The Constrained mean on high-dimensional Hyperbolic space.

Ronny Bergmann 2027-03-03

Introduction

In this example we compare the Pprojected Gradient Algorithm (PGA) as introduced in [BFNZ25] with both the Augmented Lagrangian Method (ALM) and the Exact Penalty Method (EPM) [LB19].

using Chairmarks, CSV, DataFrames, Manifolds, Manopt, CairoMakie, Random

Consider the constrained Riemannian center of mass for a given set of points ``q_i M$ $i=1,\ldots,N$ given by

\[\operatorname*{arg\,min}_{p\in\mathcal C} \sum_{i=1}^N d_{\mathrm{M}}^2(p,q_i)\]

constrained to a set $\mathcal C \subset \mathcal M$.

For this experiment set $\mathcal M = \mathbb H^d$ for $d=2,\ldots,200$, the Hyperbolic space and the constrained set $\mathcal C = C_{c,r}$ as the ball of radius $r$ around the center point $c$, where we choose here $r=\frac{1}{\sqrt{n}}$ and $c = (0,\ldots,0,1)^{\mathrm{T}}$ and a $σ = \frac{3}{2}n^{1/4}$.

n_range = Vector(2:200)
radius_range = [1 / sqrt(n) for n in n_range]
N_range = [400 for n ∈ n_range]
M_range = [Hyperbolic(n) for n ∈ n_range]
σ_range = [ 1.5/sqrt(sqrt(n-1)) for n ∈ n_range]

Our data consists of $N=200$ points, where we skew the data a bit to force the mean to be outside of the constrained set $\mathcal C$.

Cost, gradient and projection

We can formulate the constrained problem above in two different forms. Both share a cost adn require a gradient. For performance reasons, we also provide a mutating variant of the gradient

f(M, p; pts=[]) = 1 / (2 * length(pts)) .* sum(distance(M, p, q)^2 for q in pts)

grad_f(M, p; pts=[]) = -1 / length(pts) .* sum(log(M, p, q) for q in pts)

function grad_f!(M, X, p; pts=[])
    zero_vector!(M, X, p)
    Y = zero_vector(M, p)
    for q in pts
        log!(M, Y, p, q)
        X .+= Y
    end
    X .*= -1 / length(pts)
    return X
end

We can model the constrained either with an inequality constraint $g(p) \geq 0$ or using a projection onto the set. For the gradient of $g$ and the projection we again also provide mutating variants.

g(M, p; op=[], radius=1) = distance(M, op, p)^2 - radius^2;
indicator_C(M, p; op=[], radius=1) = (g(M, p; op=op, radius=radius) ≤ 0) ? 0 : Inf;

function project_C(M, p; op=[], radius=1)
    X = log(M, op, p)
    n = norm(M, op, X)
    q = (n > radius) ? exp(M, op, (radius / n) * X) : copy(M, p)
    return q
end;

function project_C!(M, q, p; radius=1, op=[], X=zero_vector(M, op))
    log!(M, X, op, p)
    n = norm(M, op, X)
    if (n > radius)
        exp!(M, q, op, (radius / n) * X)
    else
        copyto!(M, q, p)
    end
    return q
end;

grad_g(M, p; op=[]) = -2 * log(M, p, op)
function grad_g!(M, X, p; op=[])
    log!(M, X, p, op)
    X .*= -2
    return X
end

the mean

For comparison, we first compute the Riemannian center of mass, that is the minimization above but not constrained to $\mathcal C$. We can then project this onto $\mathcal C$. For the projected mean we obtain $g(p) = 0$ since the original mean is outside of the set, the projected one lies on the bounday.

We first generate all data

centers = [[zeros(n)..., 1.0] for n in n_range]
begin
    Random.seed!(5)
    data = [
        [
            exp(
                M,
                c,
                get_vector(
                    M, c, σ * randn(n) .+ 2 * r .* ones(n), DefaultOrthonormalBasis()
                ),
            ) for _ in 1:N
        ] for
        (c, r, n, N, M, σ) in zip(centers, radius_range, n_range, N_range, M_range, σ_range)
    ]
end
means = [mean(M, d) for (M, d) in zip(M_range, data)]
dc = [
    indicator_C(M, m; op=c, radius=r) for
    (M, m, c, r) in zip(M_range, means, centers, radius_range)
]
minimum(dc) # Sanity Check, this should be inf
Inf
Proj_means = [
    project_C(M, m; op=c, radius=r) for
    (M, m, c, r) in zip(M_range, means, centers, radius_range)
]
# Samll sanity check, these should all be about zero
ds = [distance(M, m, c) - r for (M, m, c, r) in zip(M_range, Proj_means, centers, radius_range)]
maximum(abs.(ds))
1.1102230246251565e-16

The experiment

We first define a single test function for one set of data for a manifold

function bench_aep(Manifold, center, radius, data)
    # local functions
    _f(M, p) = f(M, p; pts=data)
    _grad_f!(M, X, p) = grad_f!(M, X, p; pts=data)
    _proj_C!(M, q, p) = project_C!(M, q, p; radius=radius, op=center)
    _g(M, p) = g(M, p; radius=radius, op=center)
    _grad_g!(M, X, p) = grad_g!(M, X, p; op=center)
    #
    #
    # returns
    stats = Dict(:PGA => Dict(), :ALM => Dict(), :EPM => Dict())
    #
    #
    # first runs
    # println(manifold_dimension(Manifold), ": ")
    mean_pga = copy(Manifold, center)
    pgas = projected_gradient_method!(
        Manifold,
        _f,
        _grad_f!,
        _proj_C!,
        mean_pga;
        evaluation=InplaceEvaluation(),
        record=[:Cost],
        stopping_criterion=StopAfterIteration(150) |
                           StopWhenProjectedGradientStationary(Manifold, 1e-7),
        return_state=true,
    )
    stats[:PGA][:Iter] = length(get_record(pgas, :Iteration))
    mean_alm = copy(Manifold, center)
    alms = augmented_Lagrangian_method!(
        Manifold,
        _f,
        _grad_f!,
        mean_alm;
        evaluation=InplaceEvaluation(),
        g=[_g],
        grad_g=[_grad_g!],
        record=[:Cost],
        return_state=true,
    )
    stats[:ALM][:Iter] = length(get_record(alms, :Iteration))
    mean_epm = copy(Manifold, center)
    epms = exact_penalty_method!(
        Manifold, _f, _grad_f!, mean_epm;
        evaluation=InplaceEvaluation(), return_state=true,
        g=[_g], grad_g=[_grad_g!], record=[:Cost],
    )
    stats[:EPM][:Iter] = length(get_record(epms, :Iteration))
    #
    #
    # Benchmarks
    pga_b = @be projected_gradient_method!($Manifold, $_f, $_grad_f!, $_proj_C!,
        $(copy(Manifold, center)); evaluation=$(InplaceEvaluation()),
        stopping_criterion=$(
            StopAfterIteration(150) | StopWhenProjectedGradientStationary(Manifold, 1e-7)
        ),
    ) evals = 1 samples = 10 seconds = 100
    stats[:PGA][:time] = mean(pga_b).time
    alm_b = @be augmented_Lagrangian_method!($Manifold, $_f, $_grad_f!,
        $(copy(Manifold, center)); evaluation=$(InplaceEvaluation()),
        g=$([_g]), grad_g=$([_grad_g!]),
    ) evals = 1 samples = 10 seconds = 100
    stats[:ALM][:time] = mean(alm_b).time
    epm_b = @be exact_penalty_method!($Manifold, $_f, $_grad_f!,
        $(copy(Manifold, center)); evaluation=$(InplaceEvaluation()),
        g=$([_g]), grad_g=$([_grad_g!]),
    ) evals = 1 samples = 10 seconds = 100
    stats[:EPM][:time] = mean(epm_b).time
    return stats
end
bench_aep (generic function with 1 method)

and run these

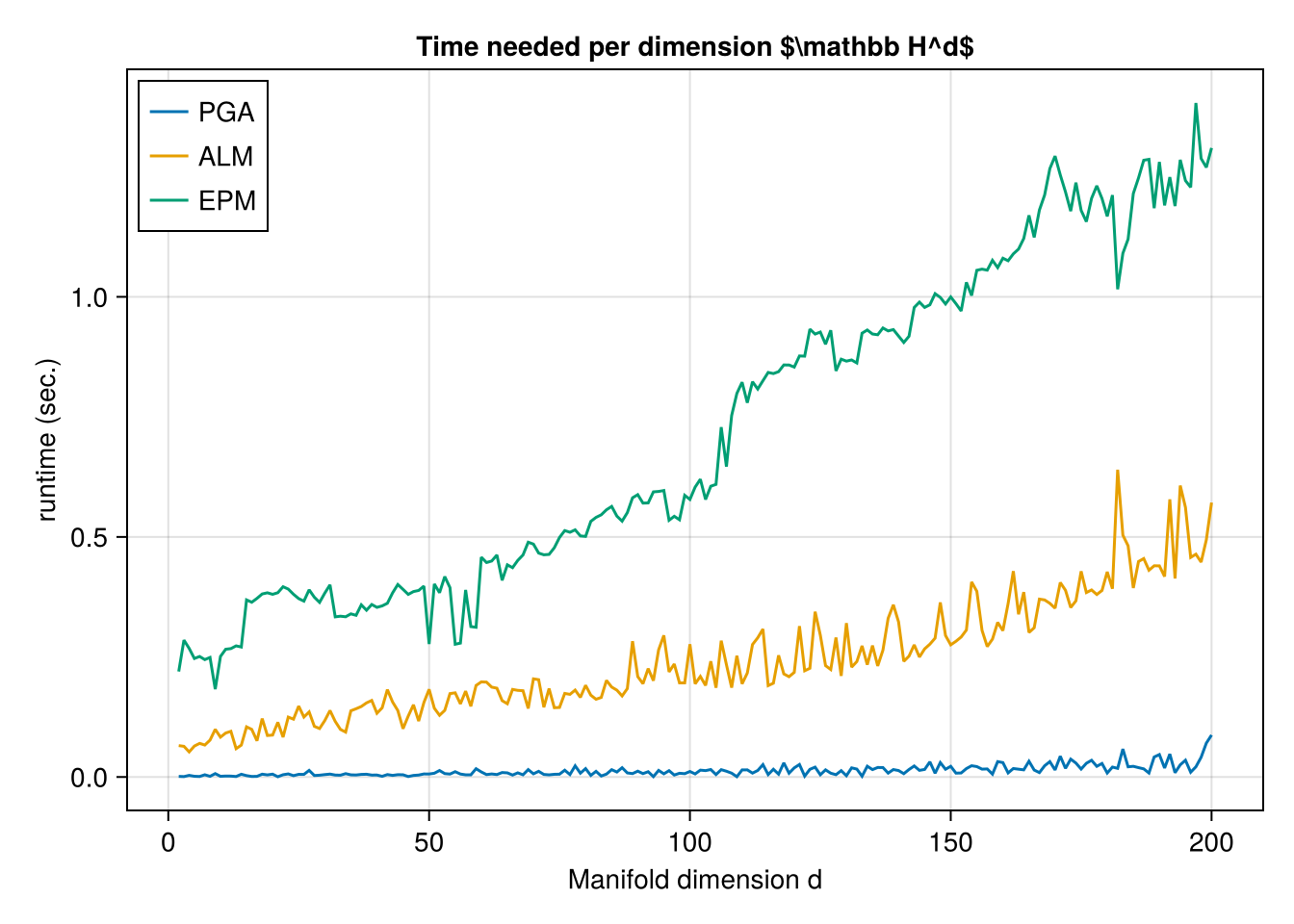

The resulting plot of runtime is

fig = Figure()
axis = Axis(fig[1, 1]; title=raw"Time needed per dimension $\mathbb H^d$")
lines!(axis, n_range, [bi[:PGA][:time] for bi in b]; label="PGA")
lines!(axis, n_range, [bi[:ALM][:time] for bi in b]; label="ALM")
lines!(axis, n_range, [bi[:EPM][:time] for bi in b]; label="EPM")
axis.xlabel = "Manifold dimension d"
axis.ylabel = "runtime (sec.)"
axislegend(axis; position=:lt)
fig

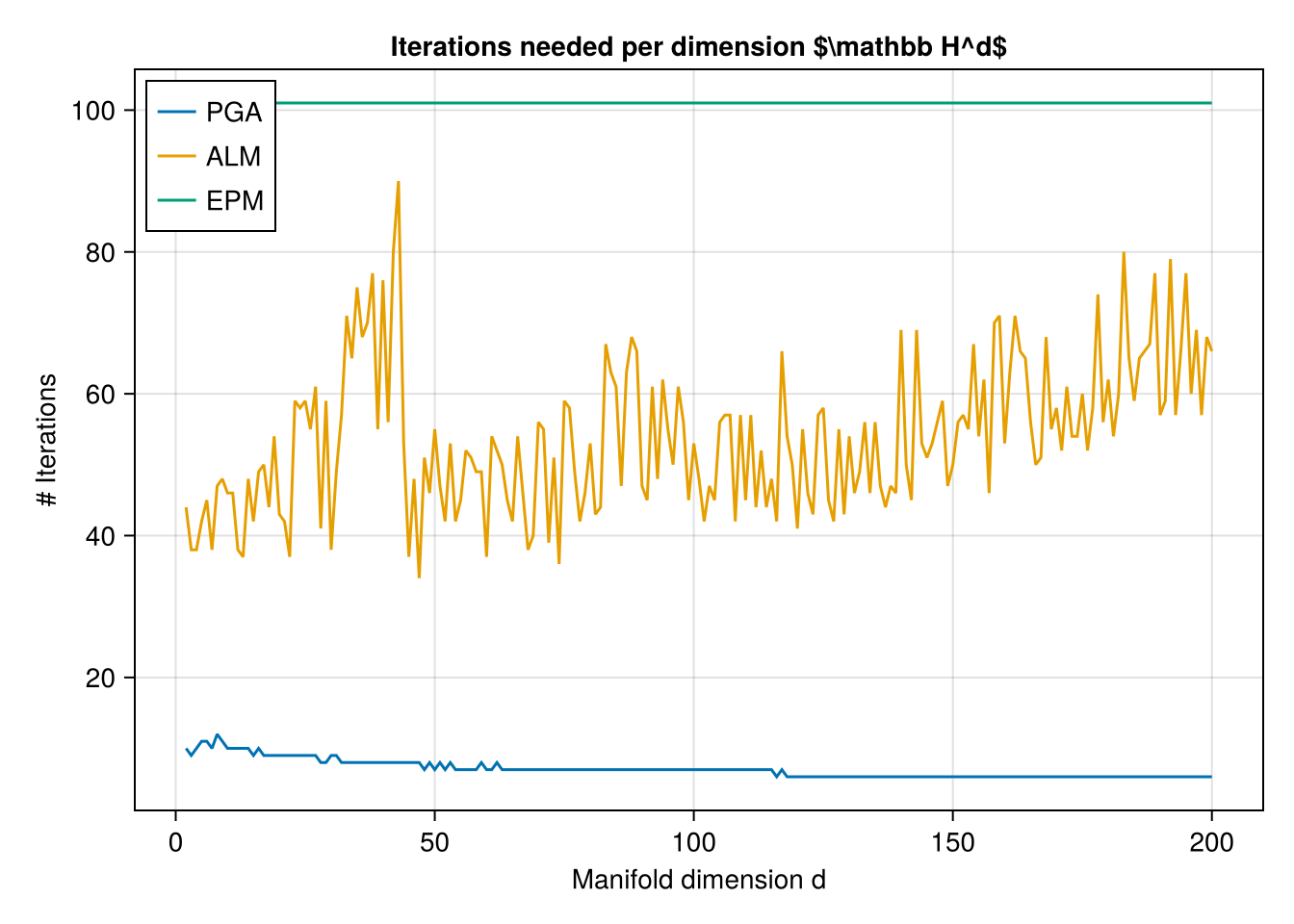

and the number of iterations reads

fig2 = Figure()
axis2 = Axis(fig2[1, 1]; title=raw"Iterations needed per dimension $\mathbb H^d$")
lines!(axis2, n_range, [bi[:PGA][:Iter] for bi in b]; label="PGA")
lines!(axis2, n_range, [bi[:ALM][:Iter] for bi in b]; label="ALM")
lines!(axis2, n_range, [bi[:EPM][:Iter] for bi in b]; label="EPM")
axis2.xlabel = "Manifold dimension d"
axis2.ylabel = "# Iterations"
axislegend(axis2; position=:lt)
fig2

Literature

[BFNZ25]
R. Bergmann, O. P. Ferreira, S. Z. Németh and J. Zhu. On projection mappings and the gradient projection method on hyperbolic space forms. Preprint, in preparation (2025).
[LB19]
C. Liu and N. Boumal. Simple algorithms for optimization on Riemannian manifolds with constraints. Applied Mathematics & Optimization (2019), arXiv:1091.10000.
