A 2D illustration of Spectral and Robust Procrustes

Ronny Bergmann 2025-11-10

using CairoMakie, CSV, DataFrames, LinearAlgebra, Manifolds, Manopt, NamedColors, PrettyTables,  Random

This example reproduces the results preented in Section 5 of [JBK+25] about the effect of the Procrustes problem

\[\operatorname*{arg\,min}_{p \in \mathrm{SO}(n)} \lVert A - pB\rVert_s\]

for different norms $s ∈ \{\mathrm{F},\mathrm{S},\mathrm{R}\}$, namely the Frobenius, spectral and a robust norm, respectively.

We first define a set of points, that originally started with a duch example from the master thesis of S. Oddsen, hence the name “duck”, though for this experiment it is merely an abstract idea of a duck.

duck = [
    # 1 left (a bit moved up), maybe a beak
    # 2 right (a bit moved down), maybe a tail
    # 3 top, maybe its head
    # 4 bottom – feat are under water, so we have an abstract duck!
    -1/2 1/2 1/2 -1/4 0.0 1/4 -3/8 -1/8 1/8 3/8;
    1/4 -2/12 -5/12 1/2 1/2 1/2 -1/2 -1/2 -1/2 -1/2
]

The general scheme of the following experiments is as follows: We first rotate the duck by a known angle, then apply certain noises and try to recover the true rotation angle.

α_true = 5π/8
R(α) = [cos(α) sin(α); -sin(α) cos(α)]
α(R) = atan(R[2,1], R[1,1])
error_on_nonoutliers(res, remaining_indices) = norm(
    res[:,remaining_indices]-duck[:,remaining_indices]
)
# true exact minimizer if there were not errors
p_true = R(-α_true) # Point on SO(2), the true reconstruction point we aim for
rotated_duck = p_true'*duck

Manifold, costs, and minimizers

M = Rotations(2)

@doc raw"""
    Spectral_cost(M, p)

Compute the spectral norm ``\lVert p\cdot B- A\rVert_2``.
"""
Spectral_cost(M, p; B=r_duck, A=duck) = opnorm(p*B - A)

@doc raw"""
    Frobenius_cost(M, p)

Compute the Frobenious norm ``\lVert p\cdot B- A\rVert_{\mathrm{F}}``.
"""
Frobenius_cost(M, p; B=r_duck, A=duck) = norm(p*B - A)

@doc raw"""
    Robust_cost(M, p)

Compute the 2-1-norm ``\lVert p\cdot B- A\rVert_{2,1}``, i.e. the sum of the 2-norms of the columns.
"""
Robust_cost(M,p; B=r_duck, A=duck) = sum([norm(c, 2.0) for c in eachcol(p*B-A)])

p0 = Matrix{Float64}(I,2,2)

2×2 Matrix{Float64}:
 1.0  0.0
 0.0  1.0

function Frobenius_minimizer(A,B; p0=p0)
    svd_AB = svd(A*B')
    return svd_AB.U*svd_AB.V'
end
function spectral_minimizer(A,B; p0=p0)
    return mesh_adaptive_direct_search(
        M,
       (M,p) -> Spectral_cost(M, p; A=A, B=B), p0;
       debug=[:Iteration, :Cost, "\n", 10, :Stop]
    )
end
function robust_minimizer(A, B; p0=p0)
    return mesh_adaptive_direct_search(
         M,
        (M,p) -> Robust_cost(M, p; A=A, B=B), p0;
        debug=[:Iteration, :Cost, "\n", 10, :Stop]
    )
 end

Experiment 1: Outliers that are orthogonal and the same distance

We start with two outliers at the same (even) distance

sub_experiment1 = "even"
outlier_shifts1 = [[2.0, 0.0], [0.0,2.0]]
outlier_indices1 = [2,8]
remaining_indices1 = [k for k=1:size(duck,2) if k ∉ outlier_indices1]

Since we apply these outliers after rotation, one way to illustrate them on the duck is to rotate them back and draw that into the original data.

outlier_shifts1_rp = [R(-α_true)x for x in outlier_shifts1]
outlier_lines1 = [
    [
        [
            duck[xy,outlier_indices1[k]],
            duck[xy,outlier_indices1[k]] + outlier_shifts1_rp[k][xy]
        ] for xy = 1:2
    ]
    for k=1:length(outlier_indices1)
]

outliers1_rotated_duck = copy(rotated_duck)
    # generate outliers on the rotated duck
    for (i,k) in enumerate(outlier_indices1)
        outliers1_rotated_duck[:,k] += outlier_shifts1[i]
    end

We compute the minimizers

p1F = Frobenius_minimizer(duck, outliers1_rotated_duck)
p1S = spectral_minimizer(duck, outliers1_rotated_duck)
p1R = robust_minimizer(duck, outliers1_rotated_duck)
nothing

Initial f(x): 2.929307
# 10    f(x): 2.000000
# 20    f(x): 2.000000
# 30    f(x): 2.000000
The algorithm computed a poll step size (5.820766091346741e-11) less than 1.0e-10.
Initial f(x): 9.096802
# 10    f(x): 4.000000
# 20    f(x): 4.000000
# 30    f(x): 4.000000
The algorithm computed a poll step size (5.820766091346741e-11) less than 1.0e-10.

and we generate the rotated results

duck1F = p1F * outliers1_rotated_duck
duck1S = p1S * outliers1_rotated_duck
duck1R = p1R * outliers1_rotated_duck

The result is

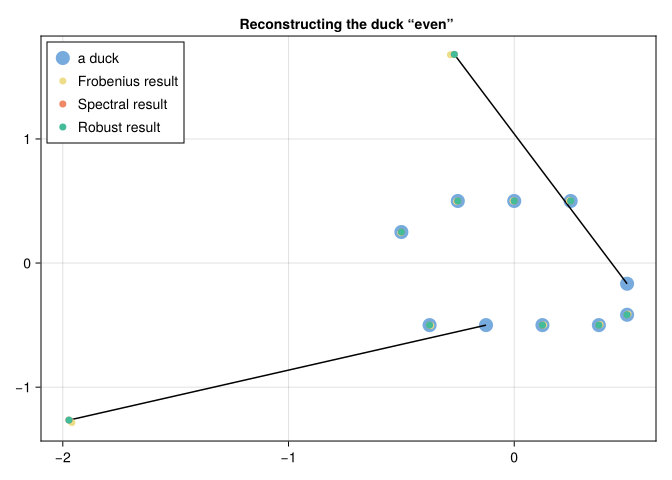

res1_fig = Figure()
res1_ax = Axis(res1_fig[1, 1], title="Reconstructing the duck “$(sub_experiment1)” ")
scatter!(res1_ax, duck[1,:], duck[2,:], label="a duck", color=color_duck, markersize=20)
for k=1:length(outlier_indices1)
    lines!(res1_ax, outlier_lines1[k][1], outlier_lines1[k][2], color=:black)
end
scatter!(res1_ax, duck1F[1,:], duck1F[2,:], label="Frobenius result", color=color_Frobenius, markersize=10)
scatter!(res1_ax, duck1S[1,:], duck1S[2,:], label="Spectral result", color=color_spectral, markersize=10)
scatter!(res1_ax, duck1R[1,:], duck1R[2,:], label="Robust result", color=color_robust, markersize=10)
axislegend(res1_ax,position = :lt)
res1_fig

We can also look at the numbers: How well the angle is reconstructed and how large the error on the non-outliers is;

α_errors = [α(p1F), α(p1S), α(p1R)] .- α_true
l2_errors = [error_on_nonoutliers(d, remaining_indices1) for d in [duck1F, duck1S, duck1R]]
pretty_table(
    DataFrame(:rownames => ["angle", "non-outlier"], :F => [α_errors[1], l2_errors[1]], :S => [α_errors[2], l2_errors[2]], :R => [α_errors[3], l2_errors[3]]);
    backend=:markdown, column_labels = ["error on", "Frobenius", "spectral", "robust"])

We see both in outlier error and angle reconstruction, Frobenius is not reconstructions perfectly, while both spectral and robust do.

Experiment 2: Outliers that are orthogonal and the same distance

We start with two outliers that are orthogonal but of different length in movement.

sub_experiment2 = "orth"
outlier_shifts2 = [[1.0, 0.0], [0.0,2.0]]
outlier_indices2 = [2,8]
remaining_indices2 = [k for k=1:size(duck,2) if k ∉ outlier_indices2]

Since we apply these outliers after rotation, one way to illustrate them on the duck is to rotate them back and draw that into the original data.

outlier_shifts2_rp = [R(-α_true)x for x in outlier_shifts2]
outlier_lines2 = [
    [
        [
            duck[xy,outlier_indices2[k]],
            duck[xy,outlier_indices2[k]] + outlier_shifts2_rp[k][xy]
        ] for xy = 1:2
    ]
    for k=1:length(outlier_indices2)
]

outliers2_rotated_duck = copy(rotated_duck)
    # generate outliers on the rotated duck
    for (i,k) in enumerate(outlier_indices2)
        outliers2_rotated_duck[:,k] += outlier_shifts2[i]
    end

We compute the minimizers

p2F = Frobenius_minimizer(duck, outliers2_rotated_duck)
p2S = spectral_minimizer(duck, outliers2_rotated_duck)
p2R = robust_minimizer(duck, outliers2_rotated_duck)
nothing

Initial f(x): 2.929222
# 10    f(x): 1.948920
# 20    f(x): 1.947072
# 30    f(x): 1.947072
# 40    f(x): 1.947072
# 50    f(x): 1.947072
# 60    f(x): 1.947072
The algorithm computed a poll step size (5.820766091346741e-11) less than 1.0e-10.
Initial f(x): 8.101267
# 10    f(x): 3.000000
# 20    f(x): 3.000000
# 30    f(x): 3.000000
The algorithm computed a poll step size (5.820766091346741e-11) less than 1.0e-10.

and we generate the rotated results

duck2F = p2F * outliers2_rotated_duck
duck2S = p2S * outliers2_rotated_duck
duck2R = p2R * outliers2_rotated_duck

The result is

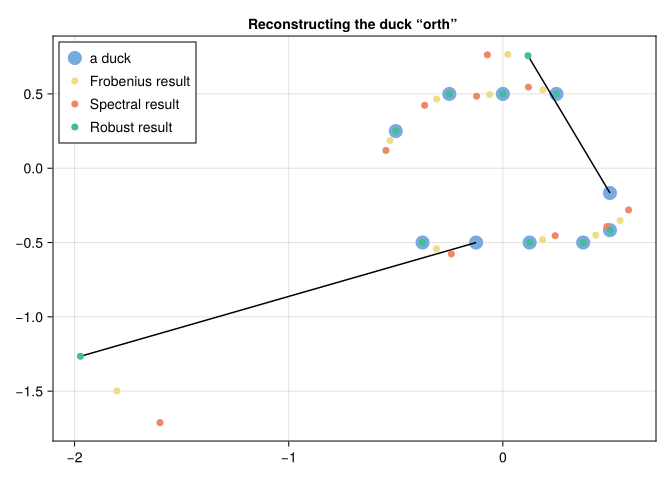

    res2_fig = Figure()
    res2_ax = Axis(res2_fig[1, 1], title="Reconstructing the duck “$(sub_experiment2)” ")
    scatter!(res2_ax, duck[1,:], duck[2,:], label="a duck", color=color_duck, markersize=20)
    for k=1:length(outlier_indices2)
        lines!(res2_ax, outlier_lines2[k][1], outlier_lines2[k][2], color=:black)
    end
    scatter!(res2_ax, duck2F[1,:], duck2F[2,:], label="Frobenius result", color=color_Frobenius, markersize=10)
    scatter!(res2_ax, duck2S[1,:], duck2S[2,:], label="Spectral result", color=color_spectral, markersize=10)
    scatter!(res2_ax, duck2R[1,:], duck2R[2,:], label="Robust result", color=color_robust, markersize=10)
    axislegend(res2_ax,position = :lt)
    res2_fig

Again we can look at both the angle and non-outlier errors:

α_errors = [α(p2F), α(p2S), α(p2R)] .- α_true
l2_errors = [error_on_nonoutliers(d, remaining_indices1) for d in [duck2F, duck2S, duck2R]]
pretty_table(
    DataFrame(:rownames => ["angle", "non-outlier"], :F => [α_errors[1], l2_errors[1]], :S => [α_errors[2], l2_errors[2]], :R => [α_errors[3], l2_errors[3]]);
    backend = :markdown, column_labels = ["error on", "Frobenius", "spectral", "robust"])

For this second experiment both the figure and the errors indicate, that robust is still reconstructing perfectly, while spectral even performs worth than Frobenius.

Experiment 3: Outliers that are orthogonal and the same distance

We continue with two outliers that are neither of same length nor orthogonal.

sub_experiment3 = "orth"
outlier_shifts3 = [[1.0, 2.0], [0.0,2.0]]
outlier_indices3 = [2,8]
remaining_indices3 = [k for k=1:size(duck,2) if k ∉ outlier_indices3]

Since we apply these outliers after rotation, one way to illustrate them on the duck is to rotate them back and draw that into the original data.

outlier_shifts3_rp = [R(-α_true)x for x in outlier_shifts3]
outlier_lines3 = [
    [
        [
            duck[xy,outlier_indices3[k]],
            duck[xy,outlier_indices3[k]] + outlier_shifts3_rp[k][xy]
        ] for xy = 1:2
    ]
    for k=1:length(outlier_indices3)
]

outliers3_rotated_duck = copy(rotated_duck)
    # generate outliers on the rotated duck
    for (i,k) in enumerate(outlier_indices3)
        outliers3_rotated_duck[:,k] += outlier_shifts3[i]
    end

We compute the minimizers

p3F = Frobenius_minimizer(duck, outliers3_rotated_duck)
p3S = spectral_minimizer(duck, outliers3_rotated_duck)
p3R = robust_minimizer(duck, outliers3_rotated_duck)
nothing

Initial f(x): 3.682931
# 10    f(x): 2.717797
# 20    f(x): 2.717797
# 30    f(x): 2.717797
# 40    f(x): 2.717797
# 50    f(x): 2.717797
The algorithm computed a poll step size (5.820766091346741e-11) less than 1.0e-10.
Initial f(x): 9.791093
# 10    f(x): 4.236068
# 20    f(x): 4.236068
# 30    f(x): 4.236068
The algorithm computed a poll step size (5.820766091346741e-11) less than 1.0e-10.

and we generate the rotated results

duck3F = p3F * outliers3_rotated_duck
duck3S = p3S * outliers3_rotated_duck
duck3R = p3R * outliers3_rotated_duck

The result is

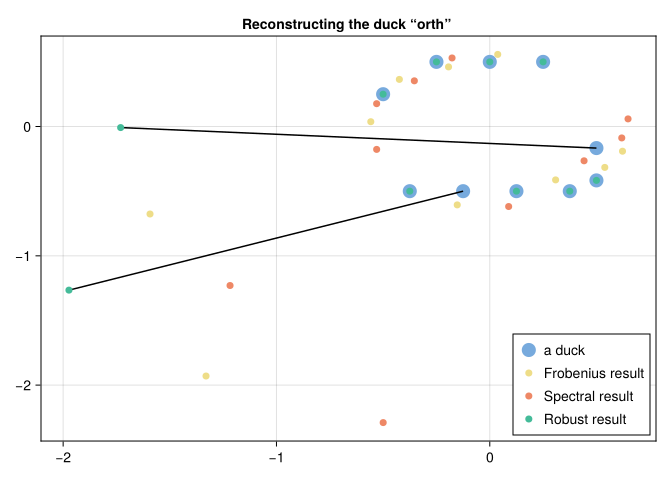

    res3_fig = Figure()
    res3_ax = Axis(res3_fig[1, 1], title="Reconstructing the duck “$(sub_experiment3)” ")
    scatter!(res3_ax, duck[1,:], duck[2,:], label="a duck", color=color_duck, markersize=20)
    for k=1:length(outlier_indices3)
        lines!(res3_ax, outlier_lines3[k][1], outlier_lines3[k][2], color=:black)
    end
    scatter!(res3_ax, duck3F[1,:], duck3F[2,:], label="Frobenius result", color=color_Frobenius, markersize=10)
    scatter!(res3_ax, duck3S[1,:], duck3S[2,:], label="Spectral result", color=color_spectral, markersize=10)
    scatter!(res3_ax, duck3R[1,:], duck3R[2,:], label="Robust result", color=color_robust, markersize=10)
    axislegend(res3_ax,position = :rb)
    res3_fig

Again we can look at both the angle and non-outlier errors:

α_errors = [α(p3F), α(p3S), α(p3R)] .- α_true
l2_errors = [error_on_nonoutliers(d, remaining_indices1) for d in [duck3F, duck3S, duck3R]]
pretty_table(
    DataFrame(:rownames => ["angle", "non-outlier"], :F => [α_errors[1], l2_errors[1]], :S => [α_errors[2], l2_errors[2]], :R => [α_errors[3], l2_errors[3]]);
    backend = :markdown, column_labels = ["error on", "Frobenius", "spectral", "robust"])

Also for the third, robust is still performing very well.

Experiment 4: Outliers of rank 1

Next we consider a rank-1 update from the nullspace of the duck.

sub_experiment4 = "spectral"
singular_duck = svd(duck)
V = nullspace(duck)
v = 1/size(V,2) * sum(V, dims=2)
u = [1.0, 1.0]
vt_shift4 = u*v'
outlier_shifts4_all = [ vt_shift4[:,i] for i in 1:size(singular_duck.Vt,2) ]
outlier_indices4 = filter(
    (i) -> norm(outlier_shifts4_all[i])>1e-13,
    collect(1:length(outlier_shifts4_all))
)
σ = 8.0
outlier_shifts4 = [ σ*outlier_shifts4_all[i] for i in outlier_indices4]
remaining_indices4 = [k for k=1:size(duck,2) if k ∉ outlier_indices4]

Since we apply these outliers after rotation, one way to illustrate them on the duck is to rotate them back and draw that into the original data.

outlier_shifts4_rp = [R(-α_true)x for x in outlier_shifts4]
outlier_lines4 = [
    [
        [
            duck[xy,outlier_indices4[k]],
            duck[xy,outlier_indices4[k]] + outlier_shifts4_rp[k][xy]
        ] for xy = 1:2
    ]
    for k=1:length(outlier_indices4)
]

outliers4_rotated_duck = copy(rotated_duck)
# generate outliers on the rotated duck
for (i,k) in enumerate(outlier_indices4)
    outliers4_rotated_duck[:,k] += outlier_shifts4[i]
end

We compute the minimizers

p4F = Frobenius_minimizer(duck, outliers4_rotated_duck)
p4S = spectral_minimizer(duck, outliers4_rotated_duck)
p4R = robust_minimizer(duck, outliers4_rotated_duck)
nothing

Initial f(x): 4.160638
# 10    f(x): 4.000000
# 20    f(x): 4.000000
# 30    f(x): 4.000000
The algorithm computed a poll step size (5.820766091346741e-11) less than 1.0e-10.
Initial f(x): 13.503372
# 10    f(x): 11.887835
# 20    f(x): 11.887818
# 30    f(x): 11.887818
# 40    f(x): 11.887818
# 50    f(x): 11.887818
The algorithm computed a poll step size (5.820766091346741e-11) less than 1.0e-10.

and we generate the rotated results

duck4F = p4F * outliers4_rotated_duck
duck4S = p4S * outliers4_rotated_duck
duck4R = p4R * outliers4_rotated_duck

The result is

    res4_fig = Figure()
    res4_ax = Axis(res4_fig[1, 1], title="Reconstructing the duck “$(sub_experiment4)” ")
    scatter!(res4_ax, duck[1,:], duck[2,:], label="a duck", color=color_duck, markersize=20)
    for k=1:length(outlier_indices4)
        lines!(res4_ax, outlier_lines4[k][1], outlier_lines4[k][2], color=:black)
    end
    scatter!(res4_ax, duck4F[1,:], duck4F[2,:], label="Frobenius result", color=color_Frobenius, markersize=10)
    scatter!(res4_ax, duck4S[1,:], duck4S[2,:], label="Spectral result", color=color_spectral, markersize=10)
    scatter!(res4_ax, duck4R[1,:], duck4R[2,:], label="Robust result", color=color_robust, markersize=10)
    axislegend(res4_ax,position = :rt)
    res4_fig

We can also look at the error, though since all points are outliers, we can only look at the angle reconstruction:

α_errors = [α(p4F), α(p4S), α(p4R)] .- α_true
pretty_table(
    DataFrame(:rownames => ["angle", ], :F => [α_errors[1],], :S => [α_errors[2],], :R => [α_errors[3],]);
    backend = :markdown, column_labels = ["error on", "Frobenius", "spectral", "robust"])

now, robust slightly fails, while both Frobenius and spectral perform very well, the algorithm for spectral maybe just stopping a bit early.

Experiment 5: Outliers of rank 1 plus uniform noise

Next we consider a rank-1 update from the nullspace of the duck and add uniform noise

sub_experiment5 = "spectral_and_uniform"
Random.seed!(23)
Rmat = 0.125*rand(size(duck)...)
vt_shift5 = u*v'.+ Rmat
outlier_shifts5_all = [ vt_shift5[:,i] for i in 1:size(singular_duck.Vt,2) ]
outlier_indices5 = filter(
    (i) -> norm(outlier_shifts5_all[i])>1e-13,
    collect(1:length(outlier_shifts5_all))
)
σ = 4.0
outlier_shifts5 = [ σ*outlier_shifts5_all[i] for i in outlier_indices5]
remaining_indices5 = [k for k=1:size(duck,2) if k ∉ outlier_indices5]

Since we apply these outliers after rotation, one way to illustrate them on the duck is to rotate them back and draw that into the original data.

outlier_shifts5_rp = [R(-α_true)x for x in outlier_shifts5]
outlier_lines5 = [
    [
        [
            duck[xy,outlier_indices5[k]],
            duck[xy,outlier_indices5[k]] + outlier_shifts5_rp[k][xy]
        ] for xy = 1:2
    ]
    for k=1:length(outlier_indices5)
]

outliers5_rotated_duck = copy(rotated_duck)
# generate outliers on the rotated duck
for (i,k) in enumerate(outlier_indices5)
    outliers5_rotated_duck[:,k] += outlier_shifts5[i]
end

We compute the minimizers

p5F = Frobenius_minimizer(duck, outliers5_rotated_duck)
p5S = spectral_minimizer(duck, outliers5_rotated_duck)
p5R = robust_minimizer(duck, outliers5_rotated_duck)
nothing

Initial f(x): 3.278339
# 10    f(x): 3.138811
# 20    f(x): 3.138811
# 30    f(x): 3.138811
# 40    f(x): 3.138811
# 50    f(x): 3.138811
The algorithm computed a poll step size (5.820766091346741e-11) less than 1.0e-10.
Initial f(x): 11.255009
# 10    f(x): 9.349293
# 20    f(x): 9.348961
# 30    f(x): 9.348960
# 40    f(x): 9.348960
# 50    f(x): 9.348960
# 60    f(x): 9.348960
The algorithm computed a poll step size (5.820766091346741e-11) less than 1.0e-10.

and we generate the rotated results

duck5F = p5F * outliers5_rotated_duck
duck5S = p5S * outliers5_rotated_duck
duck5R = p5R * outliers5_rotated_duck

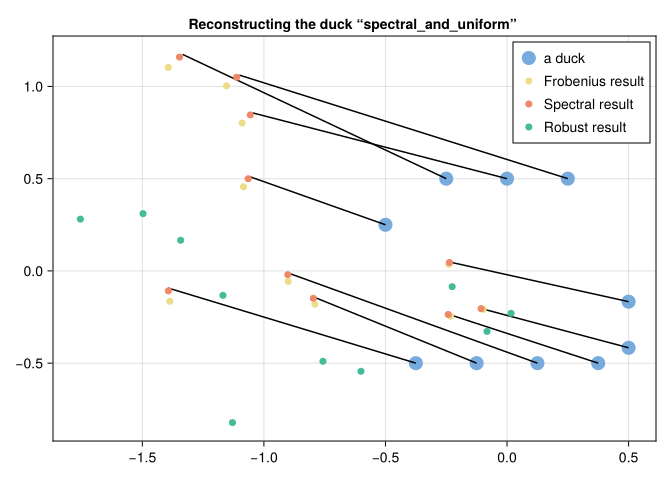

The result is

    res5_fig = Figure()
    res5_ax = Axis(res5_fig[1, 1], title="Reconstructing the duck “$(sub_experiment5)” ")
    scatter!(res5_ax, duck[1,:], duck[2,:], label="a duck", color=color_duck, markersize=20)
    for k=1:length(outlier_indices5)
        lines!(res5_ax, outlier_lines5[k][1], outlier_lines5[k][2], color=:black)
    end
    scatter!(res5_ax, duck5F[1,:], duck5F[2,:], label="Frobenius result", color=color_Frobenius, markersize=10)
    scatter!(res5_ax, duck5S[1,:], duck5S[2,:], label="Spectral result", color=color_spectral, markersize=10)
    scatter!(res5_ax, duck5R[1,:], duck5R[2,:], label="Robust result", color=color_robust, markersize=10)
    axislegend(res5_ax,position = :rt)
    res5_fig

We can also look at the error, though since all points are outliers, we can only look at the angle reconstruction:

α_errors = [α(p5F), α(p5S), α(p5R)] .- α_true
pretty_table(
    DataFrame(
        :rownames => ["angle"],
        :F => [α_errors[1]], :S => [α_errors[2]], :R => [α_errors[3]]
    );
    backend = :markdown,
    column_labels = ["error on", "Frobenius", "spectral", "robust"],
)

Here, booth robust and Frobenius struggle to reconstruct, while spectral performs best.

Technical details

This tutorial is cached. It was last run on the following package versions.

Status `~/work/ManoptExamples.jl/ManoptExamples.jl/examples/Project.toml`
  [6e4b80f9] BenchmarkTools v1.6.1
  [336ed68f] CSV v0.10.15
  [13f3f980] CairoMakie v0.15.6
  [0ca39b1e] Chairmarks v1.3.1
  [35d6a980] ColorSchemes v3.31.0
  [5ae59095] Colors v0.13.1
  [a93c6f00] DataFrames v1.8.0
  [31c24e10] Distributions v0.25.122
  [682c06a0] JSON v1.1.0
  [8ac3fa9e] LRUCache v1.6.2
  [b964fa9f] LaTeXStrings v1.4.0
  [d3d80556] LineSearches v7.4.0
  [ee78f7c6] Makie v0.24.6
  [af67fdf4] ManifoldDiff v0.4.5
  [1cead3c2] Manifolds v0.11.0
  [3362f125] ManifoldsBase v2.0.0
  [0fc0a36d] Manopt v0.5.25
  [5b8d5e80] ManoptExamples v0.1.17 `..`
  [51fcb6bd] NamedColors v0.2.3
  [91a5bcdd] Plots v1.41.1
  [08abe8d2] PrettyTables v3.1.0
  [6099a3de] PythonCall v0.9.28
  [f468eda6] QuadraticModels v0.9.14
  [1e40b3f8] RipQP v0.7.0

This tutorial was last rendered October 16, 2025, 12:15:10.

Literature
