Elastic Geodesic under Force Field on the Sphere

Laura Weigl, Ronny Bergmann, and Anton Schiela 2025-11-25

using LinearAlgebra, SparseArrays, OffsetArrays
using Manifolds, Manopt, ManoptExamples
using GLMakie, Makie, GeometryTypes, Colors, ColorSchemes, NamedColors
using CSV, DataFrames

Introduction

In this example we compute an elastic geodesic under a force field on the sphere by applying Newton’s method on vector bundles which was introduced in [WBS25]. This example reproduces the results from the example in Section 6.1 therein.

We consider the sphere $\mathbb{S}^2$ equipped with the Riemannian metric $⟨ ⋅ , ⋅ ⟩$ given by the Euclidean inner product with corresponding norm $\lVert ⋅ \rVert$ and an interval $I = [0,T] ⊂ \mathbb R$. Let $\mathcal X = H^1(I, \mathbb S^2)$ and $\mathcal E^* = T^*\mathcal X$ its cotangent bundle.

Our goal is to find a zero of the mapping $F: \mathcal X → \mathcal E^*$ with

\[F(γ)ϕ := \int_I ⟨\dot{γ}(t), \dot{ϕ}(t)⟩ + ω(γ(t))ϕ(t) \; \mathrm{d}t,\]

for $γ ∈ \mathcal X$ and $ϕ ∈ T_γ\mathcal X$.

Additionally, we have to take into account that boundary conditions $γ(0) = γ_0$ and $γ(T) = γ_T$ for given $γ_0, γ_T ∈ \mathbb S^2$ are satisfied. This yields an elastic geodesic under a given force field $ω: \mathbb S^2 → T^*\mathbb S^2$ connecting $γ_0$ and $γ_T$.

For our example we set

    N = 50
    S = Manifolds.Sphere(2)
    power = PowerManifold(S, NestedPowerRepresentation(), N)

    mutable struct VariationalSpace
        manifold::AbstractManifold
        degree::Integer
    end

    test_space = VariationalSpace(S, 1)

    start_interval = 0.4
    end_interval = π - 0.4
    discrete_time = range(; start = start_interval, stop = end_interval, length=N+2) # equidistant discrete time points

    y0 = [sin(start_interval),0,cos(start_interval)] # startpoint of geodesic
    yT = [sin(end_interval),0,cos(end_interval)] # endpoint of geodesic

3-element Vector{Float64}:
  0.3894183423086505
  0.0
 -0.9210609940028851

As a starting point, we use the geodesic connecting $γ_0$ and $γ_T$:

y(t) =  [sin(t), 0, cos(t)]
discretized_y = [y(ti) for ti in discrete_time[2:end-1]]

50-element Vector{Vector{Float64}}:
 [0.4312823089035602, 0.0, 0.9022170304460086]
 [0.47223726752861295, 0.0, 0.8814714760881995]
 [0.5121968979637886, 0.0, 0.8588680560576649]
 [0.5510769778290171, 0.0, 0.8344544112813096]
 [0.5887955600985645, 0.0, 0.8082819980725896]
 [0.6252731458196872, 0.0, 0.7804059796777266]
 [0.6604328516715138, 0.0, 0.7508851100088696]
 [0.6942005720109947, 0.0, 0.7197816098092585]
 [0.7265051350643781, 0.0, 0.6871610355113928]
 [0.7572784529350077, 0.0, 0.6530921410646137]
 ⋮
 [0.726505135064378, 0.0, -0.6871610355113931]
 [0.6942005720109946, 0.0, -0.7197816098092586]
 [0.6604328516715138, 0.0, -0.7508851100088696]
 [0.6252731458196874, 0.0, -0.7804059796777264]
 [0.5887955600985644, 0.0, -0.8082819980725897]
 [0.5510769778290171, 0.0, -0.8344544112813096]
 [0.5121968979637888, 0.0, -0.8588680560576648]
 [0.4722372675286131, 0.0, -0.8814714760881994]
 [0.43128230890356006, 0.0, -0.9022170304460086]

In order to apply Newton’s method to find a zero of $F$, we need the linear mapping $Q_{F(γ)}^*∘ F'(γ)$ [WBS25] which can be seen as a covariant derivative. Since the sphere is an embedded submanifold of $\mathbb R^3$, we can use the formula

\[Q_{F(γ)}^*∘ F'(γ)δ γ\,ϕ = F(γ)(\overset{→}{V_γ'}(γ)δ γ\,ϕ) + F_{\mathbb R^3}'(γ)δ γ\,ϕ\]

for $δ γ, \, ϕ ∈ T_γ \mathcal X$, where $\overset{→}{V_γ}(\hat γ) ∈ L(T_γ \mathcal X, T_{\hat{γ}}\mathcal X)$ is a vector transport and $F_{\mathbb R^3}'(γ)δ γ\, ϕ = \int_I ⟨ \dot{δ γ}(t),\dot{ϕ}(t)⟩ + ω'(γ(t))δ γ(t)ϕ(t) \; \mathrm{d}t$ is the euclidean derivative of $F$.

We define a structure that has to be filled for two purposes:

Definition of an integrand and its derivative
Definition of a vector transport and its derivative

mutable struct DifferentiableMapping{F1<:Function,F2<:Function,T}
    value::F1
    derivative::F2
    scaling::T
end;

The following routines define a vector transport and its euclidean derivative. As seen above, they are needed to derive a covariant derivative of $F$.

As a vector transport we use the (pointwise) orthogonal projection onto the tangent spaces, i.e. for $p, q ∈ \mathbb S^2$ and $X ∈ T_p\mathbb S^2$ we set

\[\overset{→}{V}_{p}(q)X = (I-q ⋅ q^T)X ∈ T_q\mathbb S^2.\]

The derivative of the vector transport is then given by

\[\left(\frac{d}{dq}\overset{→}{V}_{p}(q)\big\vert_{q=p}δ q\right)X = \left( - δ q ⋅ p^T - p ⋅ δ q^T\right) ⋅ X.\]

transport_by_proj(S, p, X, q) =  X - q*(q'*X)

transport_by_proj_prime(S, p, X, dq) = (- dq*p' - p*dq')*X

transport=DifferentiableMapping(transport_by_proj,transport_by_proj_prime,nothing)

DifferentiableMapping{typeof(transport_by_proj), typeof(transport_by_proj_prime), Nothing}(transport_by_proj, transport_by_proj_prime, nothing)

The following two routines define the integrand of $F$ and its euclidean derivative. They use a force field $ω$, which is defined, below. A scaling parameter for the force is also employed.

In this example we consider the force field $ω: \mathbb S^2 → T^*\mathbb S^2$ given by the 1-form corresponding to a (scaled) winding field, i.e. for $C∈\mathbb R$ and $y∈ \mathbb{S}^2$ we set

\[ω(y) := \frac{C y_3}{y_1^2+y_2^2} ⋅ \bigg⟨ \begin{pmatrix} -y_2 \\ y_1 \\ 0 \end{pmatrix}, ⋅ \bigg⟩ ∈ (T_y\mathbb{S}^2)^*.\]

w(p, c) = c*p[3]*[-p[2]/(p[1]^2+p[2]^2), p[1]/(p[1]^2+p[2]^2), 0.0];

Its derivative is given by

function w_prime(p, c)
    denominator = p[1]^2+p[2]^2

    return c*[p[3]*2*p[1]*p[2]/denominator^2 p[3]*(-1.0/denominator+2.0*p[2]^2/denominator^2) -p[2]/denominator; p[3]*(1.0/denominator-2.0*p[1]^2/(denominator^2)) p[3]*(-2.0*p[1]*p[2]/(denominator^2)) p[1]/denominator; 0.0 0.0 0.0]
end;

F_at(Integrand, y, ydot, B, Bdot) = ydot'*Bdot+w(y,Integrand.scaling)'*B

F_prime_at(Integrand,y,ydot,B1,B1dot,B2,B2dot) = B1dot'*B2dot+(w_prime(y,Integrand.scaling)*B1)'*B2

integrand=DifferentiableMapping(F_at,F_prime_at,3.0)

DifferentiableMapping{typeof(F_at), typeof(F_prime_at), Float64}(F_at, F_prime_at, 3.0)

Newton Equation

In this example we implement a functor to compute the Newton matrix and the right hand side for the Newton equation [WBS25]

\[Q^*_{F(γ)}∘ F'(γ)δ γ + F(γ) = 0^*_γ\]

by using the assembler provided in ManoptExamples.jl.

It returns the matrix and the right hand side in base representation.

The assembly routines need a function for evaluation the iterates at the left and right quadrature point.

evaluate(p, i, tloc) = (1.0-tloc)*p[i-1]+tloc*p[i];

struct NewtonEquation{F, TS, T, I, NM, Nrhs}
    integrand::F
    test_space::TS
    transport::T
    time_interval::I
    A::NM
    b::Nrhs
end

function NewtonEquation(M, F, test_space, VT, interval)
    n = manifold_dimension(M)
    A = spzeros(n,n)
    b = zeros(n)
    return NewtonEquation{typeof(F), typeof(test_space), typeof(VT), typeof(interval), typeof(A), typeof(b)}(F, test_space, VT, interval, A, b)
end

function (ne::NewtonEquation)(M, VB, p)
    n = manifold_dimension(M)
    ne.A .= spzeros(n,n)
    ne.b .= zeros(n)

    Op = OffsetArray([y0, p..., yT], 0:(length(p)+1))

    ManoptExamples.get_jacobian!(M, Op, evaluate, ne.A, ne.integrand, ne.transport, ne.time_interval; test_space = ne.test_space)
    ManoptExamples.get_right_hand_side!(M, Op, evaluate, ne.b, ne.integrand, ne.time_interval; test_space = ne.test_space)
end

We compute the Newton direction $δ γ$ by solving the linear system given by the base representation of the Newton equation directly and return the Newton direction in vector representation:

function solve_in_basis_repr(problem, newtonstate)
    X_base = (problem.newton_equation.A) \ (-problem.newton_equation.b)
    return get_vector(problem.manifold, newtonstate.p, X_base, DefaultOrthogonalBasis())
end

solve_in_basis_repr (generic function with 1 method)

We adjust the norms for recording

    rec = RecordChange(power;
    inverse_retraction_method=ProjectionInverseRetraction());

begin
    NE = NewtonEquation(power, integrand, test_space, transport, discrete_time)

    st_res = vectorbundle_newton(power, TangentBundle(power), NE, discretized_y; sub_problem=solve_in_basis_repr,
    stopping_criterion=( StopAfterIteration(150) | StopWhenChangeLess(power,1e-12; outer_norm=Inf, inverse_retraction_method=ProjectionInverseRetraction())),
    retraction_method=ProjectionRetraction(),
    debug=[:Iteration, (:Change, "Change: %1.8e"), "\n", :Stop, (:Stepsize, "Stepsize: %1.8e"), "\n",],
    record=[:Iterate, rec => :Change],
    return_state=true
    )
end

Initial

# 1     Change: 2.96686818e+00
Stepsize: 1.00000000e+00
# 2     Change: 3.86526790e-01
Stepsize: 1.00000000e+00
# 3     Change: 2.32737984e-02
Stepsize: 1.00000000e+00
# 4     Change: 2.19379934e-04
Stepsize: 1.00000000e+00
# 5     Change: 1.15340970e-08
Stepsize: 1.00000000e+00
# 6     Change: 6.63720131e-14
Stepsize: 1.00000000e+00
At iteration 6 the algorithm performed a step with a change (1.255273380563256e-14) less than 1.0e-12.

# Solver state for `Manopt.jl`s Vector bundle Newton method
After 6 iterations

## Parameters
* retraction method: ManifoldsBase.ProjectionRetraction()
* step size: ConstantLength(1.0; type=:relative)

## Stopping criterion

Stop When _one_ of the following are fulfilled:
  * Max Iteration 150:  not reached
  * |Δp| < 1.0e-12: reached
Overall: reached
This indicates convergence: No

## Debug
    :Iteration = [ (:Iteration, "# %-6d"), (:Change, "Change: %1.8e"), "\n", (:Stepsize, "Stepsize: %1.8e"), "\n" ]
    :Stop = :Stop

## Record
(Iteration = RecordGroup([RecordIterate(Vector{Vector{Float64}}), RecordChange(; inverse_retraction_method=ManifoldsBase.ProjectionInverseRetraction())]),)

We extract the recorded values

    change = get_record(st_res, :Iteration, :Change)[2:end]
    p_res = get_solver_result(st_res)

50-element Vector{Vector{Float64}}:
 [0.3862072810538758, -0.09533087331847834, 0.9174725939521621]
 [0.3834594005073149, -0.17575240047635604, 0.9066807497070671]
 [0.38420034508283774, -0.24281962050178213, 0.8907461629092762]
 [0.38997618444778864, -0.2984067370816809, 0.8711325931382714]
 [0.40135535377804027, -0.34415448366457074, 0.8488059680323159]
 [0.4183423247899146, -0.3813361456953533, 0.8243618400166167]
 [0.44062875023728093, -0.41088642206997666, 0.7981344827927591]
 [0.4677303732599358, -0.43347156157671524, 0.7702796266514941]
 [0.49905909206373583, -0.449559252230437, 0.7408350027924774]
 [0.5339610863554352, -0.4594777974939836, 0.7097645467816784]
 ⋮
 [0.49905909206373367, 0.4495592522304387, -0.7408350027924779]
 [0.4677303732599338, 0.43347156157671657, -0.7702796266514944]
 [0.44062875023727915, 0.41088642206997783, -0.7981344827927593]
 [0.4183423247899131, 0.38133614569535446, -0.8243618400166169]
 [0.4013553537780388, 0.3441544836645715, -0.8488059680323162]
 [0.3899761844477874, 0.29840673708168164, -0.8711325931382716]
 [0.38420034508283685, 0.24281962050178285, -0.8907461629092766]
 [0.3834594005073143, 0.17575240047635673, -0.9066807497070672]
 [0.38620728105387553, 0.09533087331847828, -0.9174725939521623]

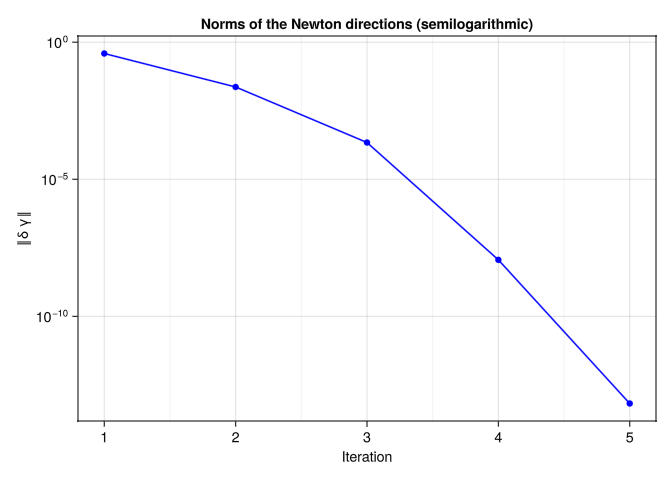

and plot the result, where we measure the norms of the Newton direction in each iteration,

f = Figure(;)
row, col = fldmod1(1, 2)
Axis(f[row, col], yscale = log10, title = string("Norms of the Newton directions (semilogarithmic)"), xminorgridvisible = true, xticks = (1:length(change)), xlabel = "Iteration", ylabel = "‖δ γ‖")
scatterlines!(change[1:end], color = :blue)
f

and the resulting elastic geodesic under the force field (orange). The starting geodesic (blue) is plotted as well. The force acting on each point of the geodesic is visualized by green arrows.

n = 25
u = range(0; stop=2 * π, length=n);
v = range(0; stop=π, length=n);
sx = zeros(n, n);
sy = zeros(n, n);
sz = zeros(n, n);

ws = [-w(p, integrand.scaling) for p in p_res]
ws_start = [-w(p, integrand.scaling) for p in discretized_y]
for i in 1:n
    for j in 1:n
        sx[i, j] = cos.(u[i]) * sin(v[j])
        sy[i, j] = sin.(u[i]) * sin(v[j])
        sz[i, j] = cos(v[j])
    end
end
fig, ax, plt = meshscatter(
    sx, sy, sz; color=RGBA(1.0, 1.0, 1.0, 0.0), shading=Makie.automatic, transparency=true
)
geodesic_start = [y0, discretized_y..., yT]
geodesic_final = [y0, p_res..., yT]
ax.show_axis = false
wireframe!(ax, sx, sy, sz; color=RGBA(0.5, 0.5, 0.7, 0.1), transparency=true)
π1(x) = 1.02 * x[1]
π2(x) = 1.02 * x[2]
π3(x) = 1.02 * x[3]
scatterlines!(
    ax, π1.(geodesic_final), π2.(geodesic_final), π3.(geodesic_final);
    markersize=5, color=:orange, linewidth=2,
)
scatterlines!(
    ax, π1.(geodesic_start), π2.(geodesic_start), π3.(geodesic_start);
    markersize=5, color=:blue, linewidth=2,
)
scatter!(ax, π1.([y0, yT]), π2.([y0, yT]), π3.([y0, yT]); markersize=5, color=:red)
arrows!(
    ax, π1.(p_res), π2.(p_res), π3.(p_res), π1.(ws), π2.(ws), π3.(ws);
    color=:green, linewidth=0.01,
    arrowsize=Vec3f(0.03, 0.03, 0.05), transparency=true, lengthscale=0.07,
)
cam = cameracontrols(ax.scene); cam.lookat[] = [-2.5, 2.5, 2]
fig

Technical details

This tutorial is cached. It was last run on the following package versions.

Status `~/Repositories/Julia/ManoptExamples.jl/examples/Project.toml`
  [6e4b80f9] BenchmarkTools v1.6.3
  [336ed68f] CSV v0.10.15
⌃ [13f3f980] CairoMakie v0.15.7
  [0ca39b1e] Chairmarks v1.3.1
  [35d6a980] ColorSchemes v3.31.0
  [5ae59095] Colors v0.13.1
  [a93c6f00] DataFrames v1.8.1
  [31c24e10] Distributions v0.25.122
⌃ [e9467ef8] GLMakie v0.13.7
  [4d00f742] GeometryTypes v0.8.5
  [7073ff75] IJulia v1.33.0
  [682c06a0] JSON v1.3.0
  [8ac3fa9e] LRUCache v1.6.2
  [b964fa9f] LaTeXStrings v1.4.0
⌃ [d3d80556] LineSearches v7.4.1
⌅ [ee78f7c6] Makie v0.24.7
  [af67fdf4] ManifoldDiff v0.4.5
⌃ [1cead3c2] Manifolds v0.11.6
⌃ [3362f125] ManifoldsBase v2.2.1
⌃ [0fc0a36d] Manopt v0.5.28
  [5b8d5e80] ManoptExamples v0.1.17 `..`
  [51fcb6bd] NamedColors v0.2.3
  [6fe1bfb0] OffsetArrays v1.17.0
  [91a5bcdd] Plots v1.41.2
  [08abe8d2] PrettyTables v3.1.2
  [6099a3de] PythonCall v0.9.30
  [f468eda6] QuadraticModels v0.9.14
  [731186ca] RecursiveArrayTools v3.39.0
  [1e40b3f8] RipQP v0.7.0
Info Packages marked with ⌃ and ⌅ have new versions available. Those with ⌃ may be upgradable, but those with ⌅ are restricted by compatibility constraints from upgrading. To see why use `status --outdated`

This tutorial was last rendered December 14, 2025, 11:26:10.

Literature

[WBS25]: L. Weigl, R. Bergmann and A. Schiela. Newton's method into vector bundles Part II: : Application to Variational Problems on Manifolds, arXiv Preprint (2025).
