The Constrained mean on Hyperbolic space.

Ronny Bergmann 2027-03-03

Introduction

In this example we compare the Projected Gradient Algorithm (PGA) as introduced in [BFNZ25] with both the Augmented Lagrangian Method (ALM) and the Exact Penalty Method (EPM) [LB19].

using Chairmarks, CSV, DataFrames, Manifolds, Manopt, CairoMakie, Random

Consider the constrained Riemannian center of mass for a given set of points ``q_i M$ $i=1,\ldots,N$ given by

\[\operatorname*{arg\,min}_{p\in\mathcal C} \sum_{i=1}^N d_{\mathrm{M}}^2(p,q_i)\]

constrained to a set $\mathcal C \subset \mathcal M$.

For this experiment set $\mathcal M = \mathbb H^2$ is the Hyperbolic space and the constrained set $\mathcal C = C_{c,r}$ as the ball of radius $r$ around the center point $c$, where we choose here $r=1$ and $c = (0,0,1)^{}.

M = Hyperbolic(2)
c = Manifolds._hyperbolize(M, [0, 0])
radius = 1.0
# Sample the boundary
unit_circle = [
    exp(M, c, get_vector(M, c, radius .* [cos(α), sin(α)], DefaultOrthonormalBasis())) for
    α in 0:(2π / 720):(2π)
]

Our data consists of $N=200$ points, where we skew the data a bit to force the mean to be outside of the constrained set $\mathcal C$.

N = 200;
σ = 1.5
Random.seed!(42)
# N random points moved to top left to have a mean outside
data_pts = [
    exp(
        M,
        c,
        get_vector(
            M, c, σ .* randn(manifold_dimension(M)) .+ [2.5, 2.5], DefaultOrthonormalBasis()
        ),
    ) for _ in 1:N
]

Cost, gradient and projection

We can formulate the constrained problem above in two different forms. Both share a cost and require a gradient. For performance reasons, we also provide a mutating variant of the gradient

f(M, p; pts=[op]) = 1 / (2 * length(pts)) .* sum(distance(M, p, q)^2 for q in pts);

grad_f(M, p; pts=[op]) = -1 / length(pts) .* sum(log(M, p, q) for q in pts);

function grad_f!(M, X, p; pts=[op])
    zero_vector!(M, X, p)
    Y = zero_vector(M, p)
    for q in pts
        log!(M, Y, p, q)
        X .+= Y
    end
    X .*= -1 / length(pts)
    return X
end;

We can model the constrained either with an inequality constraint $g(p) \geq 0$ or using a projection onto the set. For the gradient of $g$ and the projection we again also provide mutating variants.

g(M, p) = distance(M, c, p)^2 - radius^2;
indicator_C(M, p) = (g(M, p) ≤ 0) ? 0 : Inf;

function project_C(M, p, r=radius)
    X = log(M, c, p)
    n = norm(M, c, X)
    q = (n > r) ? exp(M, c, (r / n) * X) : copy(M, p)
    return q
end;
function project_C!(M, q, p; X=zero_vector(M, c), r=radius)
    log!(M, X, c, p)
    n = norm(M, c, X)
    if (n > r)
        exp!(M, q, c, (r / n) * X)
    else
        copyto!(M, q, p)
    end
    return q
end;

grad_g(M, p) = -2 * log(M, p, c);
function grad_g!(M, X, p)
    log!(M, X, p, c)
    X .*= -2
    return X
end

The mean

For comparison, we first compute the Riemannian center of mass, that is the minimization above but not constrained to $\mathcal C$. We can then project this onto $\mathcal C$. For the projected mean we obtain $g(p) = 0$ since the original mean is outside of the set, the projected one lies on the boundary.

mean_data = mean(M, data_pts)
mean_projected = project_C(M, mean_data)
g(M, mean_projected)
0.0

The experiment

We first define the specific data cost functions

_f(M, p) = f(M, p; pts=data_pts)
_grad_f(M, p) = grad_f(M, p; pts=data_pts)
_grad_f!(M, X, p) = grad_f!(M, X, p; pts=data_pts)

and in a first run record a projected gradient method solver run

mean_pg = copy(M, c) # start at the center
@time pgms = projected_gradient_method!(
    M, _f, _grad_f!, project_C!, mean_pg;
    evaluation=InplaceEvaluation(),
    indicator=indicator_C,
    debug=[:Iteration, :Cost, " ", :GradientNorm, "\n", 1, :Stop],
    record=[:Iteration, :Iterate, :Cost, :Gradient],
    stopping_criterion=StopAfterIteration(150) |
                       StopWhenProjectedGradientStationary(M, 1e-7),
    return_state=true,
)
Initial f(x): 8.519830
# 1     f(x): 5.741908 |grad f(p)|:3.560737798355543
# 2     f(x): 5.741846 |grad f(p)|:1.881900575821152
# 3     f(x): 5.741846 |grad f(p)|:1.8819696248924744
# 4     f(x): 5.741846 |grad f(p)|:1.881964795224877
# 5     f(x): 5.741846 |grad f(p)|:1.8819649705365404
# 6     f(x): 5.741846 |grad f(p)|:1.8819649640556793
At iteration 6 algorithm has reached a stationary point, since the distance from the last iterate to the projected gradient (1.0030679901141345e-8) less than 1.0e-7.
  1.804329 seconds (9.43 M allocations: 489.090 MiB, 3.91% gc time, 99.67% compilation time)

# Solver state for `Manopt.jl`s Projected Gradient Method
After 6 iterations

## Parameters
* inverse retraction method: ManifoldsBase.LogarithmicInverseRetraction()
* retraction method: ManifoldsBase.ExponentialRetraction()

## Stepsize for the gradient step
ConstantLength(1.0; type=:relative)

## Stepsize for the complete step
ArmijoLinesearch(;
    initial_stepsize=1.0,
    retraction_method=ManifoldsBase.ExponentialRetraction(),
    contraction_factor=0.95,
    sufficient_decrease=0.1,
)

## Stopping criterion

Stop When _one_ of the following are fulfilled:
  * Max Iteration 150:  not reached
  * projected gradient stationary (<1.0e-7):    reached
Overall: reached
This indicates convergence: No

## Debug
    :Iteration = [(:Iteration, "# %-6d"), (:Cost, "f(x): %f"), " ", (:GradientNorm, "|grad f(p)|:%s"), "\n", 1]
    :Stop = :Stop

## Record
(Iteration = RecordGroup([RecordIteration(), RecordIterate(Vector{Float64}), RecordCost(), RecordGradient{Vector{Float64}}()]),)

and similarly perform a first run of both the augmented Lagrangian method and the exact penalty method

mean_alm = copy(M, c)
@time alms = augmented_Lagrangian_method!(
    M, _f, _grad_f!, mean_alm;
    evaluation=InplaceEvaluation(),
    g=[g], grad_g=[grad_g!],
    debug=[:Iteration, :Cost, " ", "\n", 10, :Stop],
    record=[:Iteration, :Iterate, :Cost],
    return_state=true,
)
Initial f(x): 8.519830
# 10    f(x): 5.741814
# 20    f(x): 5.741845
The algorithm computed a step size (5.830448990119683e-11) less than 1.0e-10.
  2.207807 seconds (12.38 M allocations: 635.823 MiB, 3.43% gc time, 99.41% compilation time)

# Solver state for `Manopt.jl`s Augmented Lagrangian Method
After 29 iterations

## Parameters
* ϵ: 0.0001348962882591652 (ϵ_min: 1.0e-6, θ_ϵ: 0.933254300796991)
* λ: Float64[] (λ_min: -20.0, λ_max: 20.0)
* μ: [0.94098958634295] (μ_max: 20.0)
* ρ: 15241.579027587262 (θ_ρ: 0.3)
* τ: 0.8
* current penalty: 1.1472098826459387e-9

## Stopping criterion

Stop When _one_ of the following are fulfilled:
  * Max Iteration 300:  not reached
  * Stop When _all_ of the following are fulfilled:
      * Field :ϵ ≤ 1.0e-6:  not reached
      * |Δp| < 0.00014454397707459258: not reached
    Overall: not reached
  * Stepsize s < 1.0e-10:   reached
Overall: reached
This indicates convergence: No

## Debug
    :Iteration = [(:Iteration, "# %-6d"), (:Cost, "f(x): %f"), " ", "\n", 10]
    :Stop = :Stop

## Record
(Iteration = RecordGroup([RecordIteration(), RecordIterate(Vector{Float64}), RecordCost()]),)
mean_epm = copy(M, c)
@time epms = exact_penalty_method!(
    M, _f, _grad_f!, mean_epm;
    evaluation = InplaceEvaluation(),
    g = [g], grad_g = [grad_g!],
    debug = [:Iteration, :Cost, " ", "\n", 25, :Stop],
    record = [:Iteration, :Iterate, :Cost],
    return_state = true,
)
Initial f(x): 8.519830
# 25    f(x): 5.747352
# 50    f(x): 5.742157
# 75    f(x): 5.741863
# 100   f(x): 5.741847
The value of the variable (ϵ) is smaller than or equal to its threshold (1.0e-6).
At iteration 101 the algorithm performed a step with a change (5.712257693422003e-8) less than 1.0e-6.
  1.473903 seconds (10.30 M allocations: 504.499 MiB, 6.09% gc time, 92.78% compilation time)

# Solver state for `Manopt.jl`s Exact Penalty Method
After 101 iterations

## Parameters
* ϵ: 1.0e-6 (ϵ_min: 1.0e-6, θ_ϵ: 0.933254300796991)
* u: 1.0e-6 (ϵ_min: 1.0e-6, θ_u: 0.8912509381337456)
* ρ: 3.3333333333333335 (θ_ρ: 0.3)

## Stopping criterion

Stop When _one_ of the following are fulfilled:
  * Max Iteration 300:  not reached
  * Stop When _all_ of the following are fulfilled:
      * Field :ϵ ≤ 1.0e-6:  reached
      * |Δp| < 1.0e-6: reached
    Overall: reached
Overall: reached
This indicates convergence: No

## Debug
    :Iteration = [(:Iteration, "# %-6d"), (:Cost, "f(x): %f"), " ", "\n", 25]
    :Stop = :Stop

## Record
(Iteration = RecordGroup([RecordIteration(), RecordIterate(Vector{Float64}), RecordCost()]),)

Benchmark

After a first run we now Benchmark the three algorithms with Chairmarks.jl

pg_b = @be projected_gradient_method!(
    $M, $_f, $_grad_f!, $project_C!, $(copy(M, c));
    evaluation=$(InplaceEvaluation()),
    indicator=$indicator_C,
    stopping_criterion=$(
        StopAfterIteration(150) | StopWhenProjectedGradientStationary(M, 1e-7)
    ),
) evals = 1 samples = 5 seconds = 100
Benchmark: 5 samples with 1 evaluation
 min    184.708 μs (3849 allocs: 160.688 KiB)
 median 219.917 μs (5473 allocs: 223.750 KiB)
 mean   276.942 μs (7340.60 allocs: 296.272 KiB)
 max    444.167 μs (17247 allocs: 680.953 KiB)
alm_b = @be augmented_Lagrangian_method!(
    $M, $_f, $_grad_f!, $(copy(M, c));
    evaluation = $(InplaceEvaluation()),
    g = $([g]),
    grad_g = $([grad_g!]),
) evals = 1 samples = 5 seconds = 100
Benchmark: 5 samples with 1 evaluation
 min    9.858 ms (325530 allocs: 12.246 MiB)
 median 12.499 ms (395087 allocs: 14.854 MiB)
 mean   11.926 ms (373553.40 allocs: 14.046 MiB)
 max    13.190 ms (404833 allocs: 15.218 MiB)
epm_b = @be exact_penalty_method!(
    $M, $_f, $_grad_f!, $(copy(M, c));
    evaluation = $(InplaceEvaluation()),
    g = $([g]),
    grad_g = $([grad_g!]),
) evals = 1 samples = 5 seconds = 100
Benchmark: 5 samples with 1 evaluation
 min    60.591 ms (2000556 allocs: 75.418 MiB)
 median 71.683 ms (2000556 allocs: 75.418 MiB)
 mean   78.335 ms (2000556 allocs: 75.418 MiB, 9.02% gc time)
 max    112.708 ms (2000556 allocs: 75.418 MiB, 45.09% gc time)

Plots & results

pb_x(data) = [convert(PoincareBallPoint, p).value[1] for p in data]
pb_y(data) = [convert(PoincareBallPoint, p).value[2] for p in data]

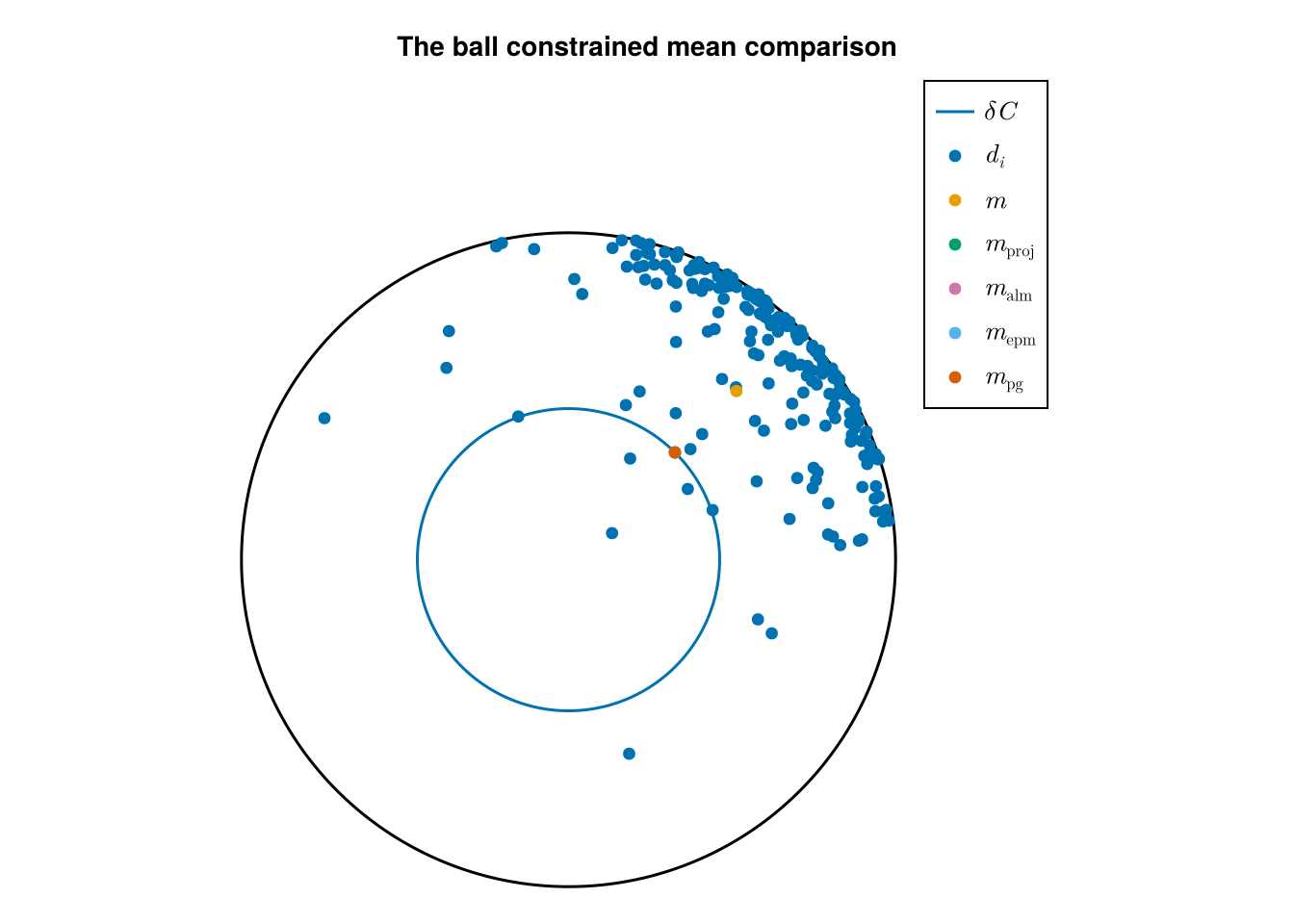

The results are

fig = Figure()
axis = Axis(fig[1, 1], title = "The ball constrained mean comparison", aspect = 1)
arc!(Point2f(0, 0), 1, -π, π; color = :black)
lines!(axis, pb_x(unit_circle), pb_y(unit_circle); label = L"δC")
scatter!(axis, pb_x(data_pts), pb_y(data_pts), label = L"d_i")
scatter!(axis, pb_x([mean_data]), pb_y([mean_data]), label = L"m")
scatter!(
    axis,
    pb_x([mean_projected]),
    pb_y([mean_projected]),
    label = L"m_{\text{proj}}",
)
scatter!(axis, pb_x([mean_alm]), pb_y([mean_alm]), label = L"m_{\text{alm}}")
scatter!(axis, pb_x([mean_epm]), pb_y([mean_epm]), label = L"m_{\text{epm}}")
scatter!(axis, pb_x([mean_pg]), pb_y([mean_pg]), label = L"m_{\text{pg}}")
axislegend(axis, position = :rt)
xlims!(axis, -1.02, 1.5)
ylims!(axis, -1.02, 1.5)
hidespines!(axis)
hidedecorations!(axis)
fig

min_cost = minimum(map(p -> _f(M, p), [mean_pg, mean_alm, mean_epm]))
5.7418455315254855

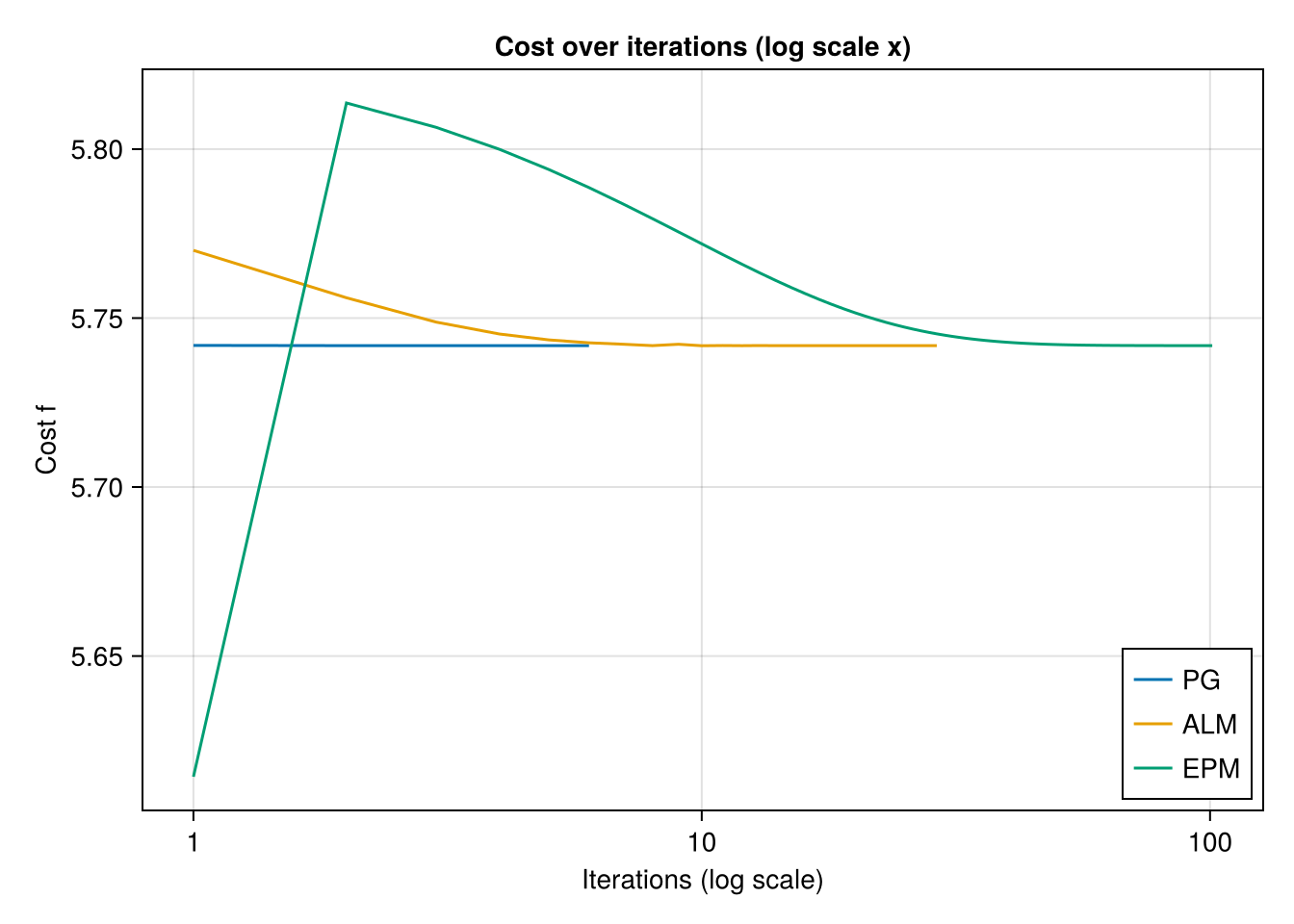

fig2 = Figure()
axis2 = Axis(
    fig2[1, 1];
    title="Cost over iterations (log scale x)",
    xscale=log10,
    yscale=identity,
    xticks=[1, 10, 100],
)
lines!(
    axis2,
    get_record(pgms, :Iteration, :Iteration),
    get_record(pgms, :Iteration, :Cost);
    label="PG",
)
lines!(
    axis2,
    get_record(alms, :Iteration, :Iteration),
    get_record(alms, :Iteration, :Cost);
    label="ALM",
)
lines!(
    axis2,
    get_record(epms, :Iteration, :Iteration),
    get_record(epms, :Iteration, :Cost);
    label="EPM",
)
axislegend(axis2; position=:rb)
#ylims!(axis2, min_cost-0.001,)
axis2.xlabel = "Iterations (log scale)"
axis2.ylabel = "Cost f"
fig2

Literature

[BFNZ25]
R. Bergmann, O. P. Ferreira, S. Z. Németh and J. Zhu. On projection mappings and the gradient projection method on hyperbolic space forms, arXiv preprint (2025).
[LB19]
C. Liu and N. Boumal. Simple algorithms for optimization on Riemannian manifolds with constraints. Applied Mathematics & Optimization (2019), arXiv:1091.10000.

Technical details

This tutorial is cached. It was last run on the following package versions.

Status `~/Repositories/Julia/ManoptExamples.jl/examples/Project.toml`
  [6e4b80f9] BenchmarkTools v1.6.0
  [336ed68f] CSV v0.10.15
  [13f3f980] CairoMakie v0.15.6
  [0ca39b1e] Chairmarks v1.3.1
  [35d6a980] ColorSchemes v3.31.0
  [5ae59095] Colors v0.13.1
  [a93c6f00] DataFrames v1.8.0
  [31c24e10] Distributions v0.25.122
⌅ [682c06a0] JSON v0.21.4
  [8ac3fa9e] LRUCache v1.6.2
  [b964fa9f] LaTeXStrings v1.4.0
  [d3d80556] LineSearches v7.4.0
  [ee78f7c6] Makie v0.24.6
  [af67fdf4] ManifoldDiff v0.4.5
  [1cead3c2] Manifolds v0.11.0
  [3362f125] ManifoldsBase v2.0.0
  [0fc0a36d] Manopt v0.5.25
  [5b8d5e80] ManoptExamples v0.1.16 `..`
  [51fcb6bd] NamedColors v0.2.3
  [91a5bcdd] Plots v1.41.1
  [08abe8d2] PrettyTables v3.1.0
  [6099a3de] PythonCall v0.9.28
  [f468eda6] QuadraticModels v0.9.14
  [1e40b3f8] RipQP v0.7.0
Info Packages marked with ⌅ have new versions available but compatibility constraints restrict them from upgrading. To see why use `status --outdated`

This tutorial was last rendered October 16, 2025, 10:29:49.
