Plotting Hyperbolic data

The 2D Hyperboloid

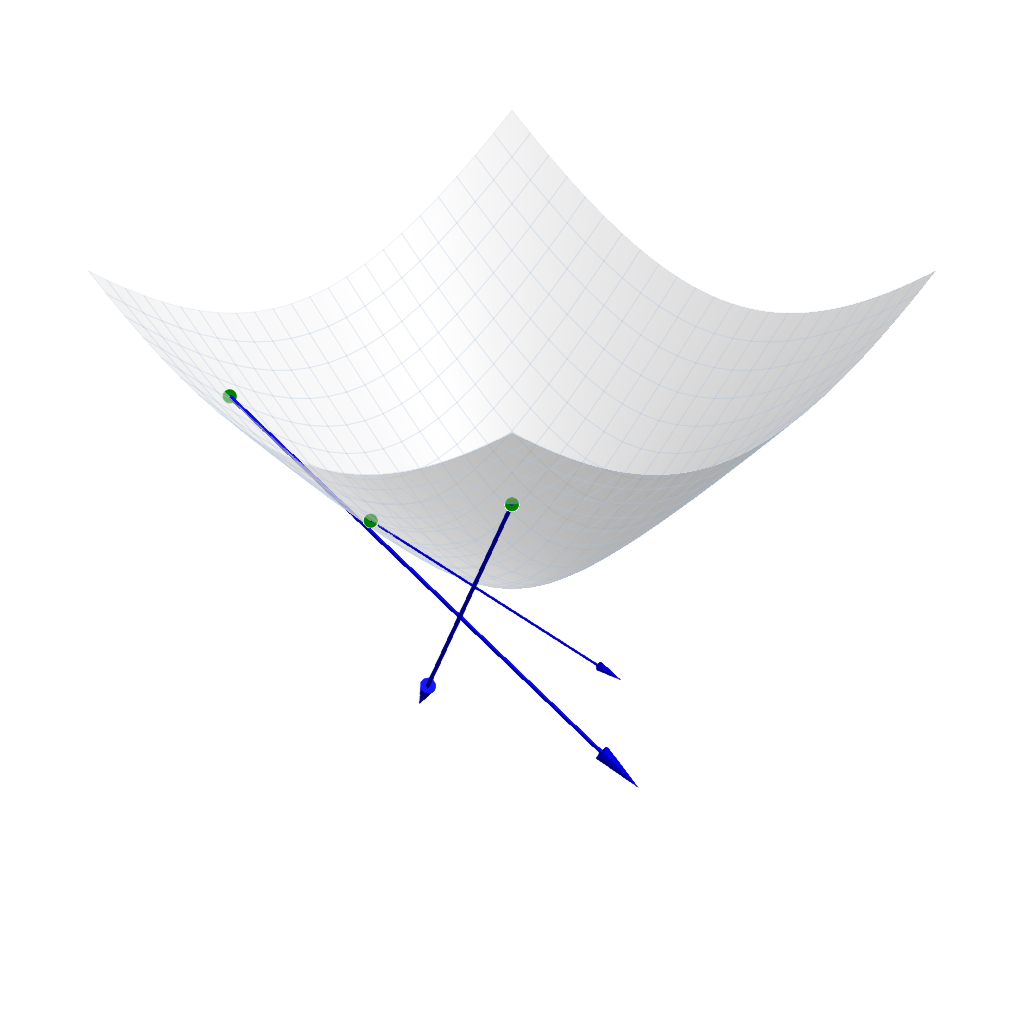

For the hyperboloid model, points and tangent vectors are either represented by plain arrays or using the HyperboloidPoint and the HyperboloidTangentVector. Here we illustrate both: For a scatter plot, we use arrays first

using GLMakie, ManifoldMakie, Manifolds
M = Hyperbolic(2)
fig, ax, pl = hyperboloidplot(M)
p = [2.0, 0.0, sqrt(5)]
q = [2.0, 2.0, 3.0]
r = [2.0, -2.0, 3.0]
pts = [p, q, r]
vecs = [log(M, p, q), log(M, q, p), log(M, r, p)]

scatter!(ax, M, pts, markersize = 20, color=:green)
arrows3d!(
    ax, M, pts, vecs; color = :blue,
    minshaftlength = 0, shaftlength=.99, shaftradius = 0.004,
    tipradius = 0.016, tiplength = 0.1,
)
fig

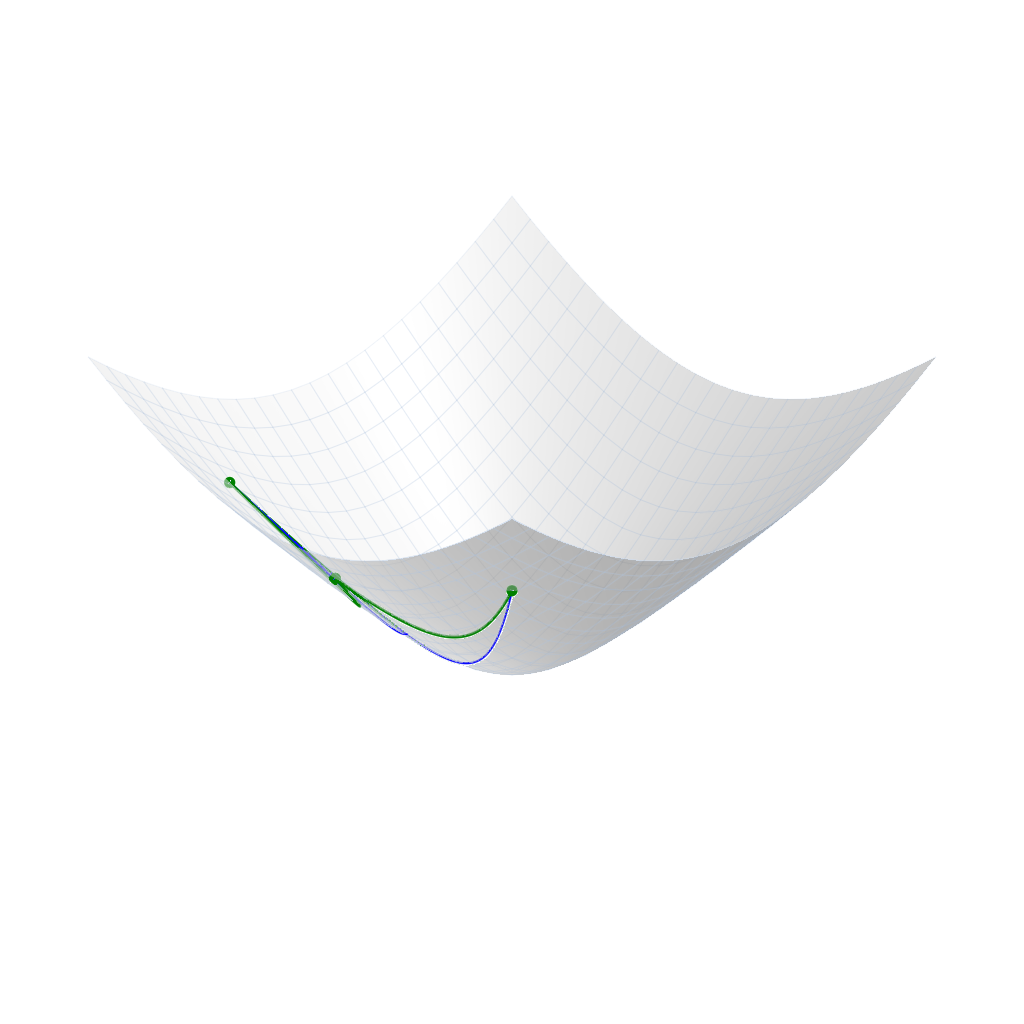

And for the (generic) plot of geodesics between points we illustrate this with the typed points

using GLMakie, ManifoldMakie, Manifolds
M = Hyperbolic(2)
fig, ax, pl = hyperboloidplot(M)

pts = HyperboloidPoint.([[2.0, 2.0, 3.0], [2.0, -2.0, 3.0], [1.5, 0.0, sqrt(3.25)]])
geodesics!(ax, M, pts; linewidth = 2, color = :blue)
pts = HyperboloidPoint.([[2.0, 2.0, 3.0], [2.0, -2.0, 3.0], [2.5, 0.0, sqrt(7.25)]])
scattergeodesics!(ax, M, pts; linewidth = 3, color = :green, markersize = 16, closed = true)
fig

The Poincaré disk and ball

For the Poincaré disc we can even plot 2D and 3D hyperbolic data.

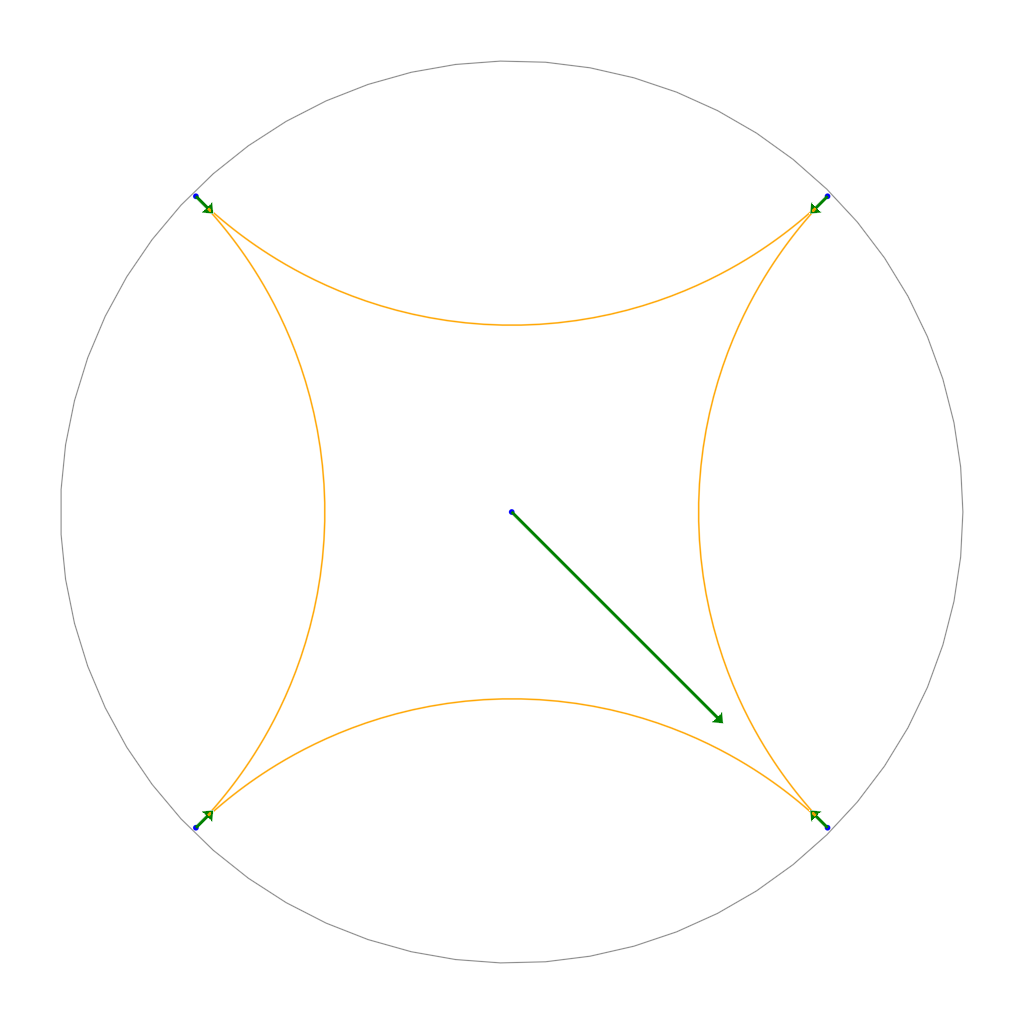

2D Hyperbolic data on the Poincaré disc

using GLMakie, ManifoldMakie, Manifolds
M = Hyperbolic(2)
fig, ax, pl = poincareballplot(M; surfacealpha = 0.5, surfaceboundary = 1)

pts = PoincareBallPoint.([[0.0, 0.0], [0.7, -0.7], [0.7, 0.7], [-0.7, 0.7], [-0.7, -0.7]])
vecs = [
    0.25 * log(M, pts[1], pts[2]), [log(M, p, pts[1]) for p in pts[2:end]]...,
]
scatter!(ax, M, pts; color = :blue, markersize = 8)
arrows2d!(ax, M, pts, vecs; color = :green)
geodesics!(ax, M, pts[2:end]; closed=true, color = :orange)
fig

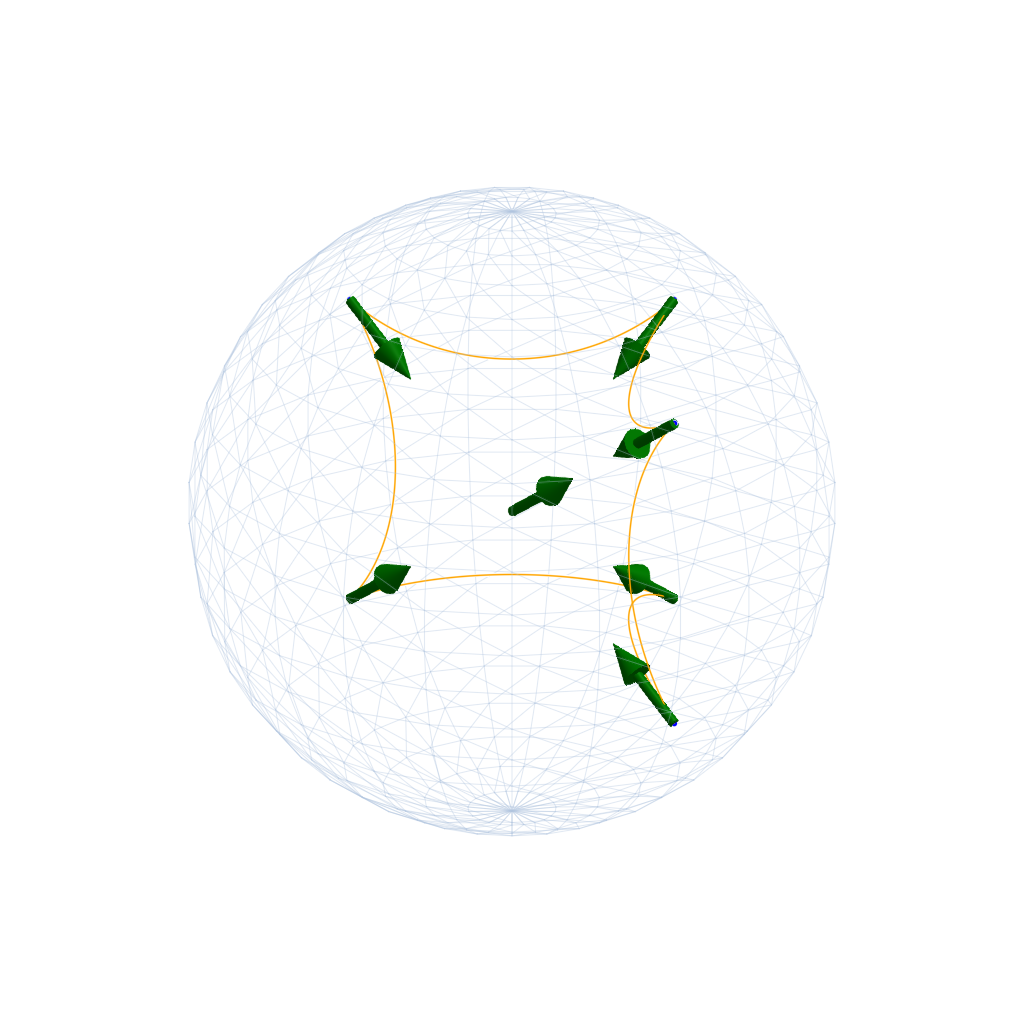

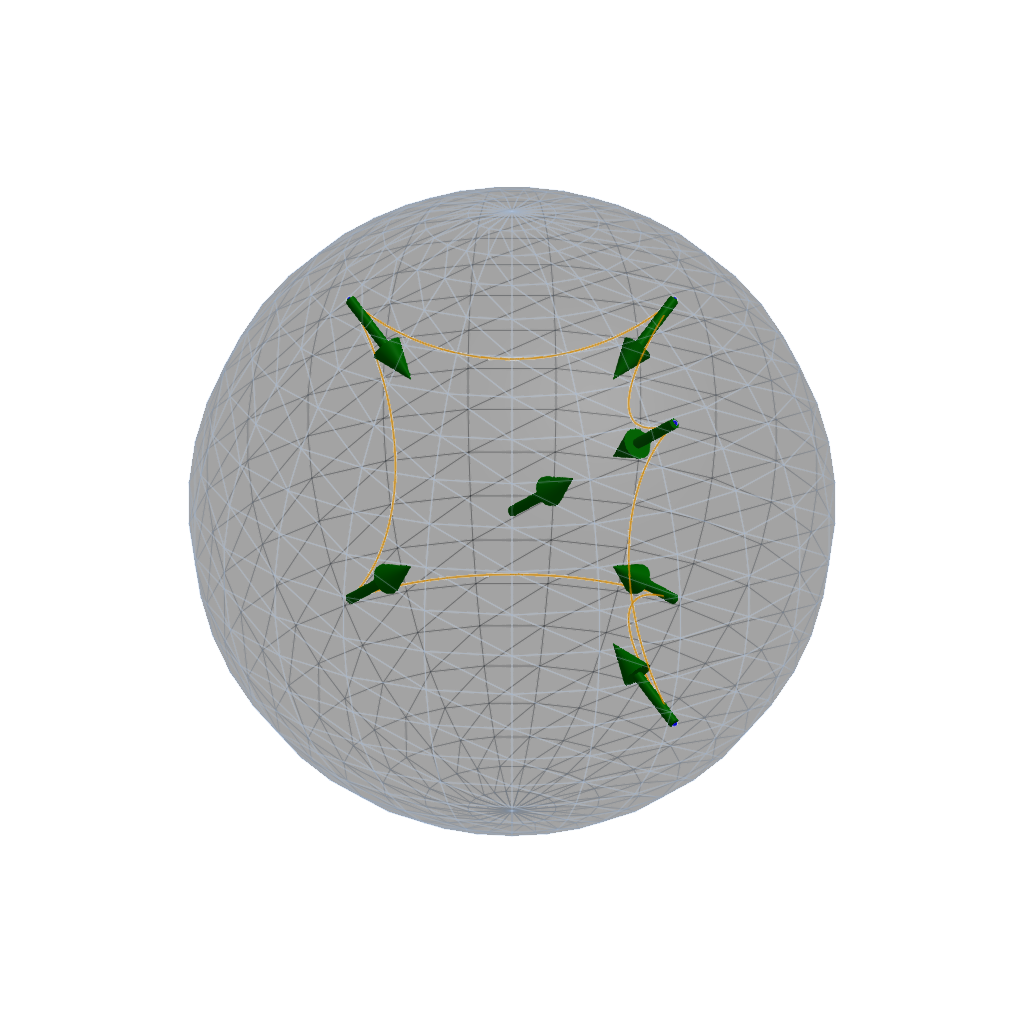

3D Hyperbolic data and the Poincaré ball

using GLMakie, ManifoldMakie, Manifolds
M = Hyperbolic(3)
fig, ax, pl = poincareballplot(M; surfacealpha = 0.0, )
pts = PoincareBallPoint.([[0.0, 0.0, 0.0], [0.5, 0.5, 0.5], [-0.5, 0.5, 0.5], [-0.5, -0.5, 0.5], [-0.5, -0.5, -0.5], [-0.5, 0.5, -0.5], [0.5, 0.5, -0.5]])
vecs = [
    0.25 .* log(M, pts[1], pts[2]), [log(M, p, pts[1]) for p in pts[2:end]]...
]
scatter!(ax, M, pts; color = :blue, markersize = 8)
arrows3d!(ax, M, pts, vecs; color = :green)
geodesics!(ax, M, pts[2:end]; closed=true, color = :orange)
ax.azimuth = 0
fig

The Poincaré Halfspace

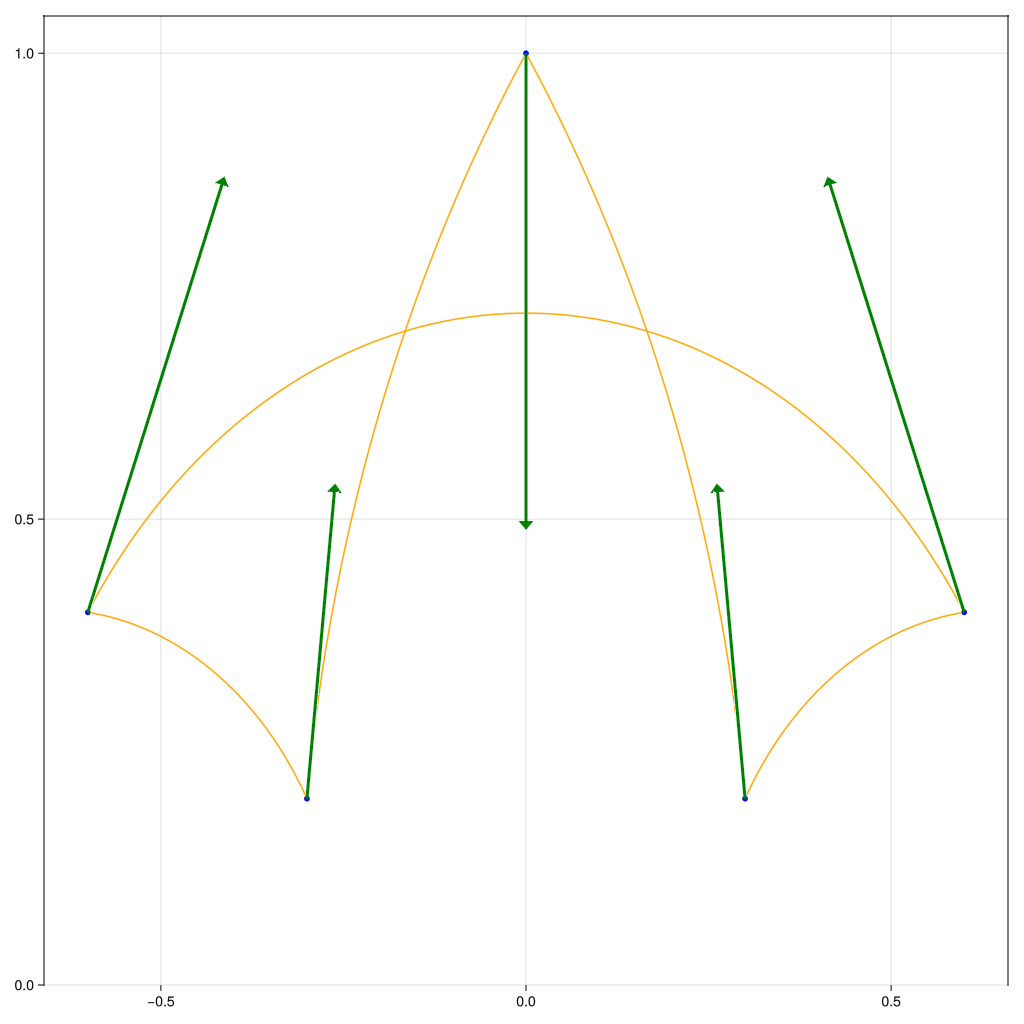

2D Hyperbolic data on the Poincaré half plane

using GLMakie, ManifoldMakie, Manifolds
M = Hyperbolic(2)
fig, ax, pl = poincarehalfspaceplot(M)

pts = PoincareHalfSpacePoint.([[0.0, 1.0], [-0.3, 0.2], [-0.6, 0.4], [0.6, 0.4], [0.3, 0.2]])
vecs = [
    log(M, pts[1], PoincareHalfSpacePoint([0.0, 0.6])), [log(M, p, pts[1]) for p in pts[2:end]]...,
]
scatter!(ax, M, pts; color = :blue, markersize = 8)
arrows2d!(ax, M, pts, vecs; color = :green)
geodesics!(ax, M, pts; closed=true, color = :orange)
fig

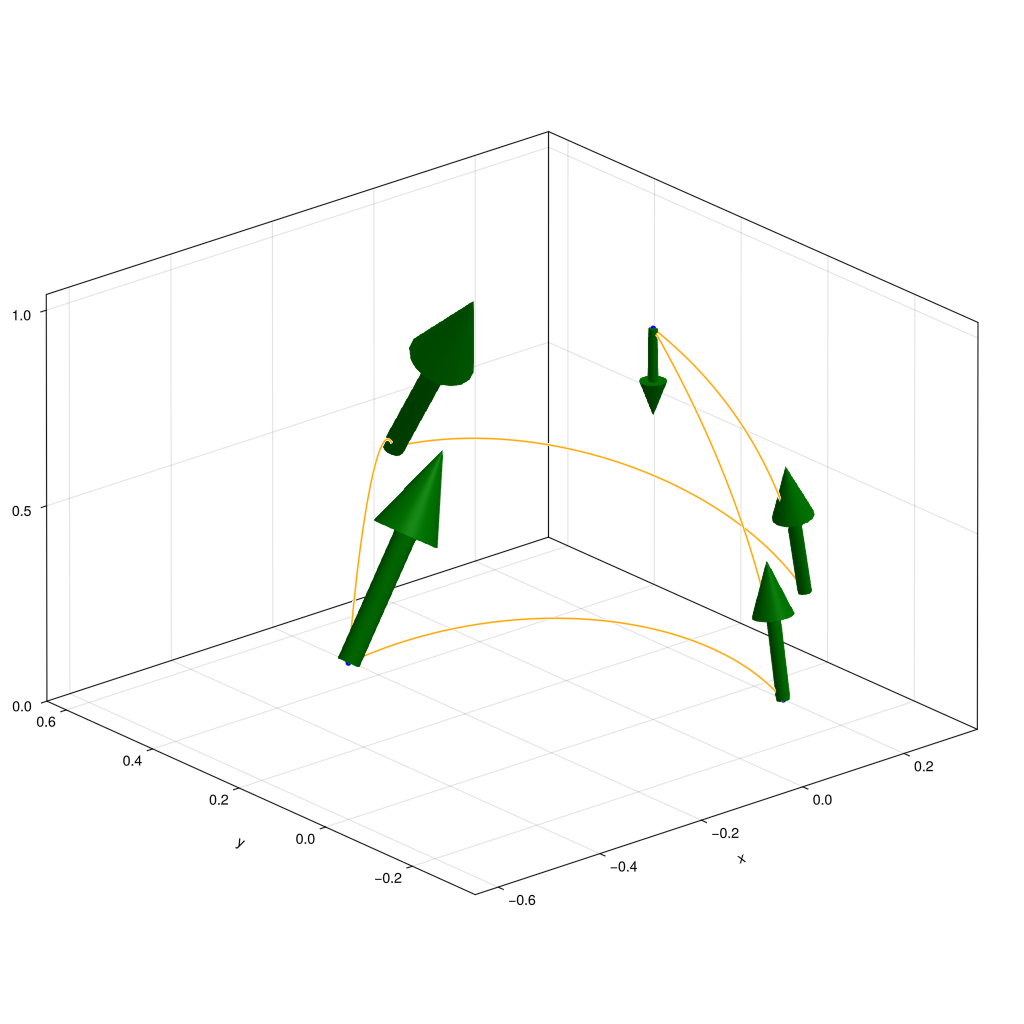

3D Hyperbolic data on the Poincaré half space

using GLMakie, ManifoldMakie, Manifolds
M = Hyperbolic(3)
fig, ax, pl = poincarehalfspaceplot(M)

pts = PoincareHalfSpacePoint.([[0.0, 0.0, 1.0], [0.0, -0.3, 0.2], [-0.6, 0.0, 0.4], [0.0, 0.6, 0.4], [0.3, 0.0, 0.2]])
vecs = [
    log(M, pts[1], PoincareHalfSpacePoint([0.0, 0.0, 0.8])), [log(M, p, pts[1]) for p in pts[2:end]]...,
]
scatter!(ax, M, pts; color = :blue, markersize = 8)
arrows3d!(ax, M, pts, vecs; color = :green)
geodesics!(ax, M, pts; closed=true, color = :orange)
fig

Function reference

ManifoldMakie.hyperboloidplot — Function

hyperboloidplot(M::Hyperbolic{ManifoldsBase.TypeParameter{Tuple{2}}}; kwargs...)

Draw the Hyperbolic(2) in the hyperboloid model as a (transparent) surface with an overlaid wireframe. This can be combined with

scatter(M, pts) to plot points thereon
arrows3d(M, pts, vecs) to plot tangent vectors
geodesics(M, pst) and scattergeodesics(M, pst) to draw geodesics

Example

fig, ax, p = hyperboloidplot(Hyperbolic(2))

Plot type

The plot type alias for the hyperboloidplot function is HyperboloidPlot.

Attributes

clip_planes = @inherit clip_planes automatic — Clip planes offer a way to do clipping in 3D space. You can set a Vector of up to 8 Plane3f planes here, behind which plots will be clipped (i.e. become invisible). By default clip planes are inherited from the parent plot or scene. You can remove parent clip_planes by passing Plane3f[].

depth_shift = 0.0 — Adjusts the depth value of a plot after all other transformations, i.e. in clip space, where -1 <= depth <= 1. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).

fxaa = true — Adjusts whether the plot is rendered with fxaa (fast approximate anti-aliasing, GLMakie only). Note that some plots implement a better native anti-aliasing solution (scatter, text, lines). For them fxaa = true generally lowers quality. Plots that show smoothly interpolated data (e.g. image, surface) may also degrade in quality as fxaa = true can cause blurring.

inspectable = @inherit inspectable — Sets whether this plot should be seen by DataInspector. The default depends on the theme of the parent scene.

inspector_clear = automatic — Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.

inspector_hover = automatic — Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.

inspector_label = automatic — Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.

model = automatic — Sets a model matrix for the plot. This overrides adjustments made with translate!, rotate! and scale!.

overdraw = false — Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends

refinement = 5 — refinement of points from wires to sampling the surface

space = :data — Sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.

ssao = false — Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.

surfacealpha = 0.5 — Surface alpha (0 = transparent, 1 = opaque).

surfacecolor = :white — Solid color of the surface.

transformation = :automatic — Controls the inheritance or directly sets the transformations of a plot. Transformations include the transform function and model matrix as generated by translate!(...), scale!(...) and rotate!(...). They can be set directly by passing a Transformation() object or inherited from the parent plot or scene. Inheritance options include:

:automatic: Inherit transformations if the parent and child space is compatible
:inherit: Inherit transformations
:inherit_model: Inherit only model transformations
:inherit_transform_func: Inherit only the transform function
:nothing: Inherit neither, fully disconnecting the child's transformations from the parent

Another option is to pass arguments to the transform!() function which then get applied to the plot. For example transformation = (:xz, 1.0) which rotates the xy plane to the xz plane and translates by 1.0. For this inheritance defaults to :automatic but can also be set through e.g. (:nothing, (:xz, 1.0)).

transparency = false — Adjusts how the plot deals with transparency. In GLMakie transparency = true results in using Order Independent Transparency.

visible = true — Controls whether the plot gets rendered or not.

wirecolor = (:lightsteelblue, 0.4) — Color of the wireframe lines drawn on top of the surface.

wires = 24 — Tessellation resolution (segments of the wireframe in every direction).

wirewidth = 0.5 — linewidth of the wire

xlims = [-3, 3] — range for the x-dimension for the surface

ylims = [-3, 3] — range for the y-dimension for the surface

source

ManifoldMakie.poincareballplot — Function

poincareballbplot(M::Hyperbolic{ManifoldsBase.TypeParameter{Tuple{2}}}; kwargs...)
poincareballbplot(M::Hyperbolic{ManifoldsBase.TypeParameter{Tuple{3}}}; kwargs...)

Draw the Hyperbolic(n), n either 2 or 3, in the Poiuncaré disc model, which more generally is a ball for more than the 2D case. This can be combined with

scatter(M, pts) to plot points thereon
arrows3d(M, pts, vecs) to plot tangent vectors
geodesics(M, pst) and scattergeodesics(M, pst) to draw geodesics

Example

fig, ax, p = poincareballbplot(Hyperbolic(2))

Plot type

The plot type alias for the poincareballplot function is PoincareBallPlot.
